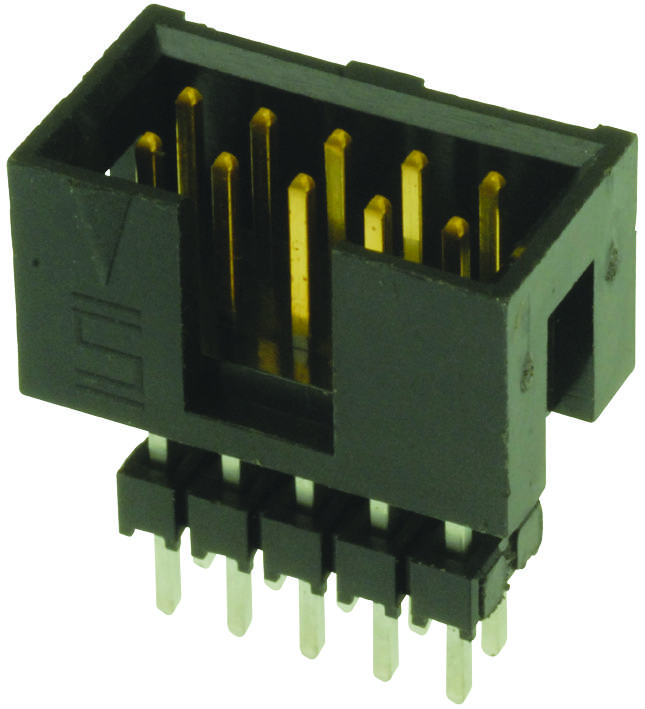

SAMTEC ZSS10502LD600 High-Performance Connector
The ZSS10502LD600 is a high-quality, through-hole connector available in double row configurations with 0.100-inch pitch. It features gold flash on the post and matte tin on the tail, providing excellent electrical conductivity and corrosion resistance. Made from phosphor bronze, this connector operates reliably within a temperature range of -55°C to +125°C and withstands voltages up to 1000 VRMS. It supports surface mount technology, with optional mechanical stability features, making it ideal for industrial, electronic, and automation applications requiring durable, precise connections.
SAMTEC ZSS10502LD600 High-Performance Connector Specifications:
- Pitch: 0.100 inches (2.54 mm)
- Material: Phosphor Bronze
- Plating: Gold flash on post, Matte Tin on tail
- Operating Temperature Range: -55°C to +125°C
- Withstanding Voltage: 1000 VRMS
- Surface Mount: Yes
- Current Rating: Not specified
- Termination: Through-hole
- Mechanical Stability: Optional board spacers and mechanical support
- Lead-Free Solderable: Yes
- Insulation Resistance: Not specified
- Maximum Dimensions: Length varies with model, typical height approximately 0.70 inches
- Certifications: Not specified
- Other Features: Double row, polarized, supporting multiple sizes and styles
Buy the Samtec ZSS10502LD600 – Reliable Connector for Industrial Applications
Purchase the Samtec ZSS10502LD600 connector online today and ensure reliable, high-quality electrical connections for your industrial and electronic projects. This connector features a 0.100-inch pitch, gold flash on the post, and matte tin on the tail for corrosion resistance and excellent conductivity. Designed from high-quality phosphor bronze, it operates efficiently within a temperature range of -55°C to +125°C and withstands voltages up to 1000 VRMS. Its surface mount design coupled with optional mechanical support makes it perfect for demanding industrial applications requiring durability, precision, and long-lasting performance.
Get Samtec ZSS10502LD600 today—built for precision, durability, and robust electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC ZSS10502LD600?
You can click on the BUY or RFQ button to purchase ZSS10502LD600 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ZSS10502LD600?
You can download the ZSS10502LD600 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ZSS10502LD600?
SAMTEC
