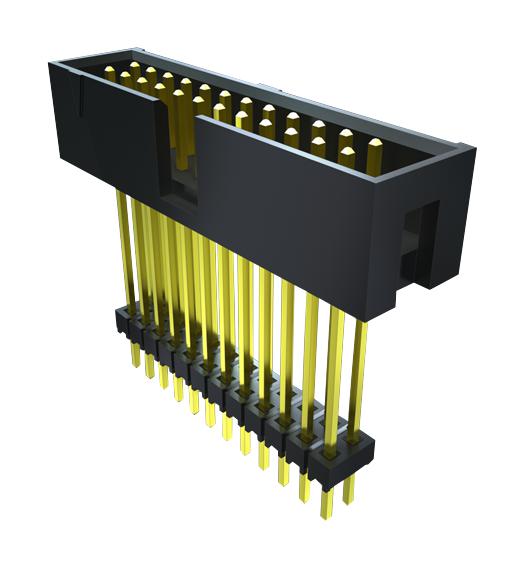

SAMTEC ZST10505LD940 Shrouded Board-to-Board Header
This product is a shrouded PCB header designed for reliable board-to-board connections, featuring a 0.025 gap, optional gold or tin plating, and multiple pin configurations. Made with high-quality materials including phosphor bronze contacts with gold or tin plating, it supports operating temperatures from -55°C to +125°C and complies with RoHS standards. Suitable for various electronic assembly applications, it offers excellent insulation resistance, adjustable heights, and polarized locking features for enhanced mechanical stability. Compatible with wave and SMT soldering processes, the connector ensures secure, durable connections in demanding environments.
SAMTEC ZST10505LD940 Shrouded Board-to-Board Header Specifications:
- Insulator Material: Filled Polyester
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 1000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pin Counts: 5, 7, 8, 10, 12, 13, 15, 17, 20, 25, 32, 36
- Pitch: 0.025 inches (0.64 mm)
- Series: ZST, TST, HTST
- Body Material: Thermoplastic
- Current Rating: 2 A per pin
- Mechanical Features: Polarized Locking, Alignment Pins
- Assembly Processes: Wave, SMT
- Dimensions: Length varies with pin count, typical insulator height adjustable, contact length around 0.100 inches
