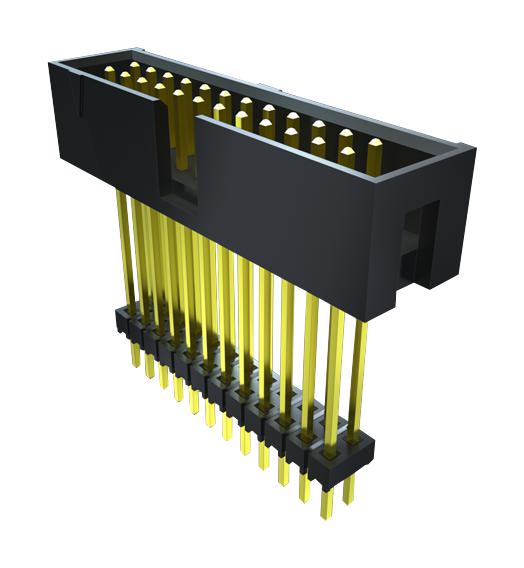

SAMTEC ZST10801LD505 Shrouded IDC Header
Shrouded .025 inch square post IDC headers are designed for reliable, high-density board-to-board connections with gold or tin plating options. These connectors feature insulation resistance, RoHS compliance, and operating temperature ranges from -55°C to +125°C. Made with phosphor bronze contacts and durable insulator materials, they support varying sizes and single-row configurations with polarization and locking options. Suitable for applications requiring precise alignment, mechanical stability, and efficient soldering, these headers are ideal for electronic assembly and industrial equipment requiring compact and robust connection solutions.
SAMTEC ZST10801LD505 Shrouded IDC Header Specifications:
- Insulator Material: Filled Polyester
- Insulation Resistance: >1000 MΩ
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Flammability Rating: UL 94V-O
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Wave/ SMT Compatibility: SMT lead coplanarity 0.10 mm to 0.15 mm
- Dimensions: Width 6.35 mm, Length varies with number of positions, hole size 0.38 mm
- Contact Pitch: 0.025 inch
- Series: ZST, TST, HTST
- Number of Positions: 5, 7, 8, 10, 12, 13, 15, 17, 20, 25, 32, 36
- Mechanical Features: Polarized, locking leads, alignment pins
- Certification: UL Listed
Buy the Samtec Series ZST Shrouded IDC Headers: ZST10801LD505
Order the Samtec ZST Series shrouded IDC header online today for high-density, reliable connections in industrial and electronic applications. Featuring gold or tin plating, RoHS compliance, and an operating temperature range up to 125°C, these headers ensure excellent insulation resistance, mechanical stability, and easy soldering. They are perfect for board-to-board, custom assemblies, and industrial equipment where durability and precise alignment matter. Choose quick, secure online ordering for fast delivery and seamless integration into your electronic projects and manufacturing processes.
Get Samtec ZST10801LD505 today—built for precision, durability, and reliable electronic connections.
