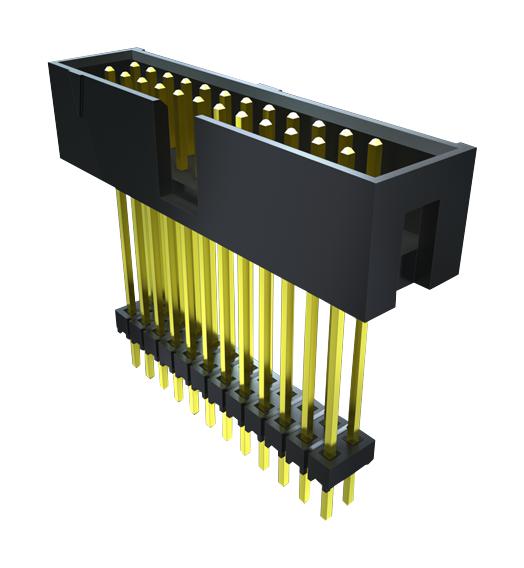

SAMTEC ZST11001SD540 Board-to-Board Connector
The ZST-113-03-F-D-0735 is a high-quality, shrouded 0.025-inch pitch board-to-board connector featuring a square IDC head, gold or tin plating options, and a wide operating temperature range of -55°C to +125°C. It offers excellent insulation resistance, UL 94V-0 flammability rating, and RoHS compliance. Designed for reliable electrical connections with a current rating up to 2 A per pin, it includes features like polarized contact, lockable leads, and optional alignment pins, making it suitable for demanding electronic applications requiring durability and precision.
SAMTEC ZST11001SD540 Board-to-Board Connector Specifications:
- Pitch: 0.025 inches
- Insulator Material: Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Operating Temp Range: -55°C to +125°C
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 1000 VRMS
- RoHS Compliant: Yes
- Current Rating: up to 2 A per pin
- Lead-Free Solderable: Yes
- Lead Coplanarity: 0.004 inches maximum for 5-15 pins, 0.006 inches for 17-36 pins
- Contact Width: 0.100 inches per position plus 0.076 inches
- Series: ZST, HTST, and others
- Size Range: 5 to 36 positions, standard sizes
- Mechanical features: Polarized, lockable, optional alignment pins
- Temperature Range: -55°C to +125°C
Buy the Buy Samtec ZST11001SD540 Part Number ZST11001SD540 Online
Purchase the Samtec ZST11001SD540 board-to-board connector online today for high-precision, UL-rated performance with excellent thermal stability and RoHS compliance. This connector features a 0.025-inch pitch, robust insulator and terminal materials, and optional gold or tin plating, suitable for demanding electronic assemblies. Its polarization, locking leads, and wide size options ensure secure connections in various applications. Built to withstand temperatures from -55°C to +125°C and rated for 1000 VRMS, it's ideal for engineers seeking durability and quality in compact connector solutions.
Get Samtec ZST11001SD540 today—designed for reliable electronic connections, durability, and high-temperature performance.
Frequently Asked Questions
Where can I buy SAMTEC ZST11001SD540?
You can click on the BUY or RFQ button to purchase ZST11001SD540 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ZST11001SD540?
You can download the ZST11001SD540 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ZST11001SD540?
SAMTEC
