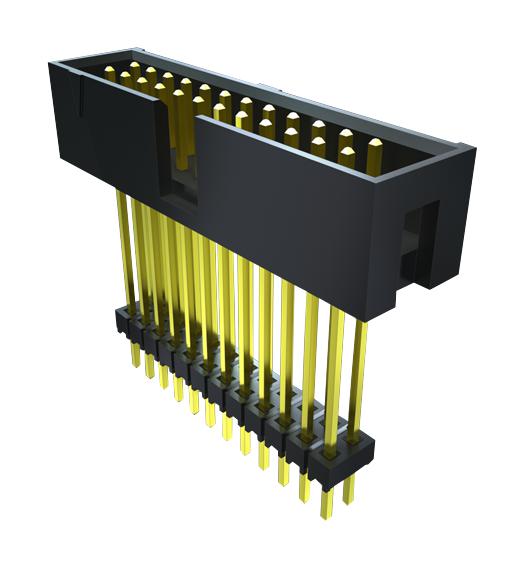

SAMTEC ZST11002TD515 Shrouded Board-to-Board Connector
The ZST series shrouded board-to-board connectors feature a 0.025-inch square post IDC head design, available in multiple sizes including 12, 13, 15, 17, 20, 25, 32, and 36 positions. Constructed with insulator material such as filled polyester and phosphor bronze terminals, these connectors offer reliable electrical performance with plating options like gold or tin over nickel. Rated for operating temperatures between -55°C to +125°C with gold plating and -55°C to +105°C with tin, they support up to 1000 VRMS withstand voltage, RoHS compliance, and lead-free solderability. Used in various electronic applications, they ensure secure connections with polarization, locking leads, and high current ratings. Suitable for through-hole or SMT mounting, with optional alignment pins and specifications optimized for mechanical stability and electrical integrity, offering easy integration in complex assembly environments.
SAMTEC ZST11002TD515 Shrouded Board-to-Board Connector Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Filled Polyester
- Plating: Gold or Tin over Nickel
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: 1000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Sizes Available: 12, 13, 15, 17, 20, 25, 32, 36 positions
- Insertion Length: Varies with size, typical 4.0 mm or more
- Current Rating: Spec varies with size, supporting high current applications
- Mounting Type: Through-hole or SMT
- Additional Features: Polarized, Locking Leads, Optional Alignment Pins, Mechanical Stability Enhancements
- Temperature Ratings: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
Buy the Samtec Series ZST Shrouded Board-to-Board Connectors: ZST11002TD515
Purchase the Samtec ZST11002TD515 shrouded board-to-board connector online today to enhance your electronic designs with secure, reliable connections. Featuring multiple sizes, gold or tin plating options, RoHS compliance, and high temperature resilience, this connector ensures optimal performance in demanding environments. Its design provides secure locking, polarization, and optional alignment pins, making installation straightforward and dependable. With lead-free solderability and support for high currents up to rated voltages, this product is ideal for complex, high-reliability electronic systems requiring precise, durable, and safe connections, all available for quick online ordering.
Buy Samtec ZST11002TD515 now and experience unmatched reliability and high-performance electrical connections for your electronic assemblies.
