SAMTEC ZST11009GD1290 Board-to-Board Connector
The shrouded .025 inch square post IDC headers provide reliable connectivity for electronic assemblies, featuring insulated bodies with gold or tin plating for corrosion resistance. Designed for high current ratings up to 2A per pin and operating temperatures from -55°C to +125°C, these connectors ensure durability and stability in demanding environments. Their compact size and lock-in mechanisms facilitate secure, vibration-resistant connections, making them suitable for board-to-board and wire-to-board applications in industrial and automation systems. Compatibility with wave and SMT soldering ensures versatile manufacturing options.
SAMTEC ZST11009GD1290 Board-to-Board Connector Specifications:
- Insulator Material: Filled Polyester
- Insulation Resistance: Suitable for high durability
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Current Rating: 2A per pin
- Operating Temperature Range: -55°C to +125°C (Gold) / -55°C to +105°C (Tin)
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 1000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Shapes and sizes vary (e.g., 5, 7, 8, 10, 12, 13, 15, 17, 20, 25, 32, 36 positions)
- Series: TST, HTST, ZST
- Soldering: Wave and SMT compatible
- Dimensions: Vary based on number of positions, typical length approximately 6.35 mm for standard sizes
- Mechanical stability supported by optional board spacers
- Connector Locking Features: Locking leads and polarized options for secure connections

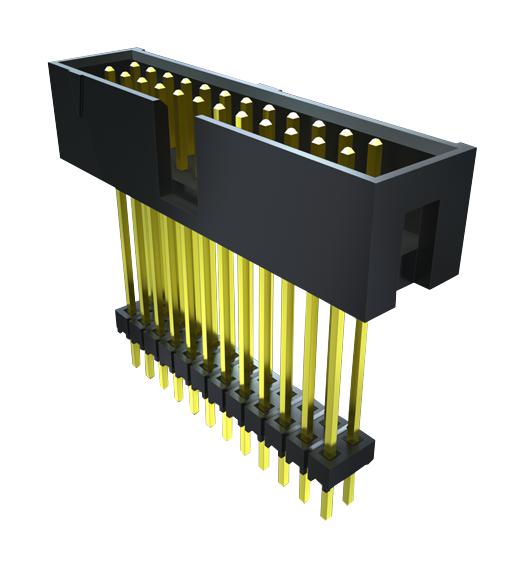

Buy the Buy Samtec ZST11009GD1290 Part Number ZST11009GD1290 Online
Experience seamless and secure connections with the Samtec ZST11009GD1290 board-to-board connector, featuring gold and tin plating for corrosion resistance. Designed for high durability in demanding environments, it supports current ratings up to 2A per pin and operates across a broad temperature range from -55°C to +125°C. Its compact design with locking and polarized features ensures vibration resistance and mechanical stability. Whether for industrial automation or electronic assembly, this connector simplifies manufacturing with wave and SMT soldering compatibility, delivering reliability and ease of use for demanding applications.
Get Samtec ZST11009GD1290 today—built for reliable and vibration-resistant electronic connections in industrial applications.
