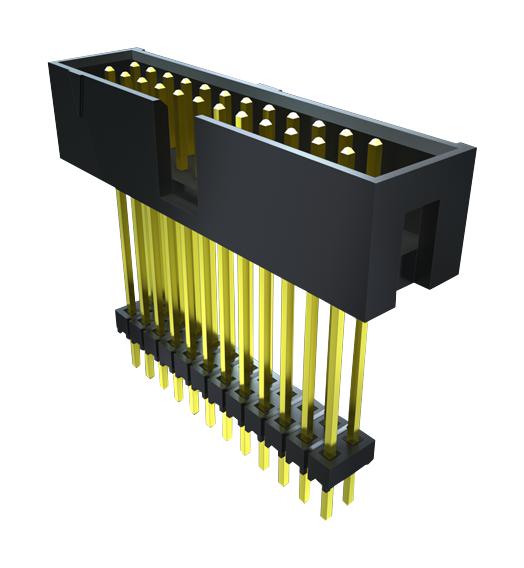

SAMTEC ZST11304TD500 Board-to-Board Header
Shrouded .025 square post IDC headers offer reliable electrical connections for board-to-board applications with gold or tin plating options, insulation resistance, and a temperature rating from -55°C to +125°C. Constructed with phosphor bronze and high-quality insulators, these headers are RoHS compliant and suitable for surface-mount installations with coplanarity and mechanical stability features. Available in various sizes and series, they’re ideal for ensuring secure, durable, high-density connections in electronic equipment and industrial automation systems, supporting wave and SMT soldering processes.
SAMTEC ZST11304TD500 Board-to-Board Header Specifications:
- Insulator Material: Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Gold Plating Thickness: 50 µ
- RoHS Compliant: Yes
- Flammability Rating: UL 94V-0
- Operating Temp Range: -55°C to +125°C
- Withstanding Voltage: 1000 VRMS
- Contact Resistance: Typical 20 mΩ
- Insulation Resistance: ≥100 MΩ at 100 VDC
- Series Options: ZST, HTST, TST
- Dimensions: Varied by size, standard sizes include 5, 7, 8, 10, 12, 13, 15, 17, 20, 25, 32, 36, in standard configurations
- Mounting Type: Wave Solder and SMT Compatible
- Coplanarity: ±0.006 inches
- Lead-Free Solderable: Yes
- Mechanical Stability: Features for added stability, including alignment pins and locking leads
Buy the Buy Samtec ZST11304TD500 Part Number ZST11304TD500 Online
Purchase the Samtec ZST11304TD500 board-to-board header online today—designed for reliable, high-performance electrical connections in industrial automation and electronics. Featuring gold or tin plating, this connector supports wave and SMT soldering methods and is RoHS compliant for eco-friendly manufacturing. Its robust construction includes phosphor bronze contacts with insulation resistance above 100 MΩ, operating temperature from -55°C to +125°C, and UL 94V-0 flammability rating. Perfect for high-density, secure connections requiring mechanical stability, this header series supports various sizes and configurations for versatile application needs.
Get Samtec ZST11304TD500 today—engineered for secure, high-density electrical connections in industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC ZST11304TD500?
You can click on the BUY or RFQ button to purchase ZST11304TD500 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ZST11304TD500?
You can download the ZST11304TD500 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ZST11304TD500?
SAMTEC
