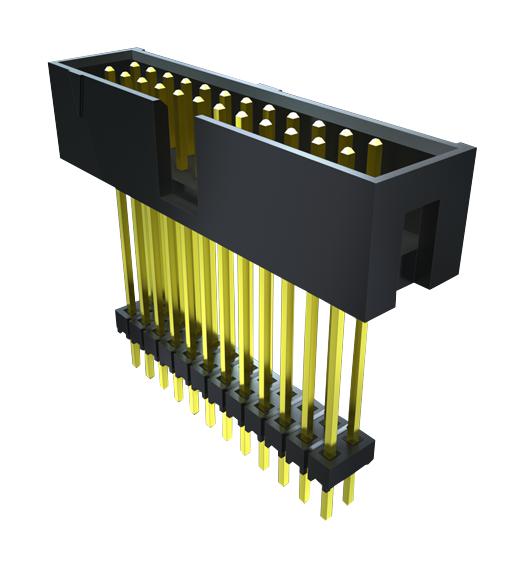

SAMTEC ZST12501GD520 Shrouded IDC Header
Shrouded .025-inch square post IDC headers designed for secure and reliable connections in electronic assemblies. The headers feature gold or tin plating over nickel for corrosion resistance, with insulator materials available in black glass-filled polyester or natural LCP. Suitable for a temperature range of -85°C to +125°C, they provide current ratings up to 2A per contact. The headers comply with RoHS standards, offer high insulation resistance, and are designed for surface-mount technology with specified coplanarity. Ideal for high-density, space-saving applications requiring robust electrical connections.
SAMTEC ZST12501GD520 Shrouded IDC Header Specifications:
- Insulator Material: Black Glass-filled Polyester or Natural LCP
- Plating: Au or Sn over 0.38-0.50 μm Ni
- Temperature Range: -85°C to +125°C (Gold), -55°C to +105°C (Tin)
- Current Rating: Up to 2A per contact
- RoHS Compliance: Yes
- Insulation Resistance: Typically high
- Lead Style: 01, 02, 03 (standard sizes)
- Operating Voltage: 1000V RMS
- Contact Material: Copper alloy with Au or Sn plating
- Width/Row: 0.254 inches (6.45 mm)
- Height: Varies based on pin count
- Surface Mount: Yes
- Coplanarity: ≤0.004 inches (0.10 mm)
- Compatible with: SMT assembly, high-density electronic modules
- Certifications: RoHS compliant
Buy the Buy Samtec ZST-113-03-F-D-0735 Part Number ZST12501GD520 Online
Order the Samtec ZST-113-03-F-D-0735 shrouded IDC header online today. Engineered for high-density electronic applications, this connector features gold or tin plating, ensures RoHS compliance, and handles operating temperatures from -85°C to +125°C. Its durable construction provides excellent insulation resistance and current handling up to 2A per contact. Perfect for PCB assembly, it offers SMT compatibility, high coplanarity, and secure contact engagement, making it an ideal choice for reliable, space-efficient electronic connections.
Get Samtec ZST-113-03-F-D-0735 today—designed for high-density, reliable electronic connections with RoHS compliance.
