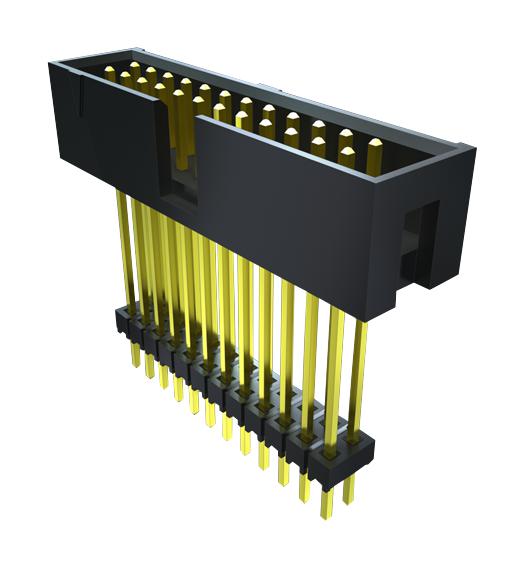

SAMTEC ZST12509GD1300 Board-to-Board Connector
The ZST series are shrouded, board-to-board connectors featuring .025 inch square post IDC headers with gold or tin plating over phosphor bronze contact materials. Designed for reliable electrical connections in industrial applications, these connectors support a wide operating temperature range of -55°C to +125°C with gold and -55°C to +105°C with tin. Compliant with RoHS standards, they include options for custom heights, polarization pins, alignment pins, and locking leads, making them suitable for demanding electronic assemblies requiring secure and durable connections. Their insulator material is filled polyester, ensuring high insulation resistance, and they are compatible with wave soldering processes.
SAMTEC ZST12509GD1300 Board-to-Board Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Nickel
- Insulator Material: Filled Polyester
- Operating Temp Range: -55°C to +125°C with gold, -55°C to +105°C with tin
- Flammability Rating: UL 94V-0
- RoHS Compliance: Yes
- Current Rating: 2 A per contact
- Vertical Height Options: Varying, custom heights available
- Dimensions: Widths from 5.08 mm to 36 mm based on size, standard sizes include 5, 7, 8, 10, 12, 13, 15, 17, 20, 25, 32, 36
- Certification: UL Listed
- Solderability: Lead-Free Solderable
- Applicable Series: TST, HTST, ZST
- Contact Pitch: 2.54 mm (0.100 inch)
- Max Current: 2 A per pin
- Mechanical Stability: Enhanced with optional mechanical spacers
- Connector Type: Board-to-board, shrouded, single row
