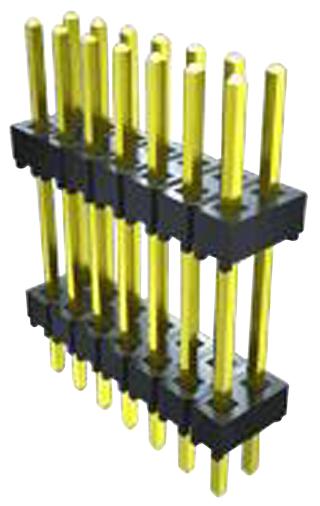

SAMTEC ZW0820SD500380 Stack Connector
This high-quality stacker connector features a black glass filled polyester insulator material with phosphor bronze terminals plated with gold over nickel, rated for operating temperatures from 55°C to +125°C with gold and 55°C to +105°C with tin. It complies with RoHS standards, offering lead-free solderability, and is suitable for reliable, high-performance electronic connections. The connector includes a matte tin tail plating, with specifications covering dimensions, materials, and operating conditions for optimal PCB integration and mechanical stability in various applications.
SAMTEC ZW0820SD500380 Stack Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over Nickel with matte Tin on tail
- Operating Temp Range: 55°C to +125°C with Gold, 55°C to +105°C with Tin
- RoHS Compliant: Yes
- Lead-Free Solderable: HW Yes, DW, EW, ZW: No, Lead Wave Only
- Overall Stacker Height: 6.35 mm
- Tail Length: 2.29 mm (shortest), 7.87 mm (longer options)
- Dimensions: Length varies, typical tail length approximately 2.29 mm to 7.87 mm
- Connector Style: Stack connector for PCB mounting
- Certification: RoHS compliant
- Design: Non-standard, non-returnable series with custom options available
- Mechanical Stability: Recommended placement of board spacers for enhanced stability
- Other options: Tail lengths and omitted pin positions specification available
- Temperature Rating: -55°C to +125°C depending on plating
- Other features: Suitable for electronic assembly in various industrial and automation applications
Buy the Buy Samtec Stack Connector Part Number ZW0820SD500380 Online
Get your Samtec Stack Connector ZW0820SD500380 today online for reliable electronic connections with high-performance materials. Featuring gold-plated contacts, RoHS compliance, and temperature resistance up to 125°C, this connector provides excellent durability and mechanical stability for your PCB applications. Easy to solder with lead-free options and custom tail lengths, it’s the ideal choice for industrial, automation, and manufacturing projects. Purchase online now to enjoy fast shipping and exceptional quality for your next electronic design or repair.
Order your Samtec SeriesZW0820SD500380 stack connector today and ensure reliable, high-quality electronic assembly for your projects.
