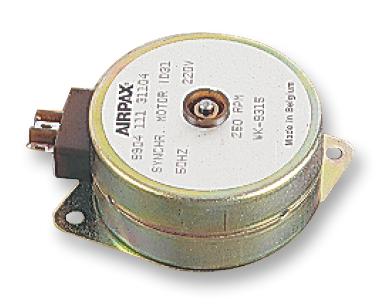

Sensata - Airpax 9904111311042108 AC Synchronous Motor
The reversible AC synchronous motor series provides fixed speed operation, typically at 250 or 500 rpm, ideal for control and instrumentation. These motors feature low mechanical noise and smooth operation, with options for factory-fitted gearheads that reduce speed and increase torque. Designed for high accuracy and positioning, they can operate on 50Hz or 60Hz supplies. Features include various mounting options, capacitor-based direction control, and performance ratings for continuous or 50% duty cycle. Suitable for precise speed control and easy installation in industrial applications.
Sensata - Airpax 9904111311042108 AC Synchronous Motor Specifications:
- Supply Voltage: 110/220 Vac, 50Hz/60Hz
- Speed: 250 rpm or 500 rpm (fixed)
- Working Torque: 0.1 to 3.3 Nm depending on model
- Current: 8 to 280 mA (varies with model and connection)
- Capacitors: 8 to 18 uF for phase shifting
- Dimensions: Range from 15 mm to 70.5 mm in diameter
- Materials: Metal components with coil windings suitable for continuous operation
- Duty Cycle: Continuous or 50% duty cycle for high performance
- Lead and terminal options: Leads (Form 1A) or solder terminals (Forms 1B & 1C)
- Temperature Range: -40°C to +100°C
Buy the Mclennan Series 9904 AC Synchronous Motor: 9904 1111311042108
Purchase the Mclennan Series 9904 AC Synchronous Motor online today for dependable fixed-speed performance ideal for control and instrumentation applications. These motors operate smoothly at 250 or 500 rpm, providing low mechanical noise and high precision. With options for factory-fitted gearheads, they deliver increased torque and varied output speeds from 1 rev/second to 1 rev/hour. Suitable for high-accuracy positioning, they are easy to install in industrial environments, ensuring consistent and reliable operation in diverse control applications.
Order your Mclennan Series 9904 AC Synchronous Motor today and experience reliable, accurate fixed-speed operation in your control systems.
