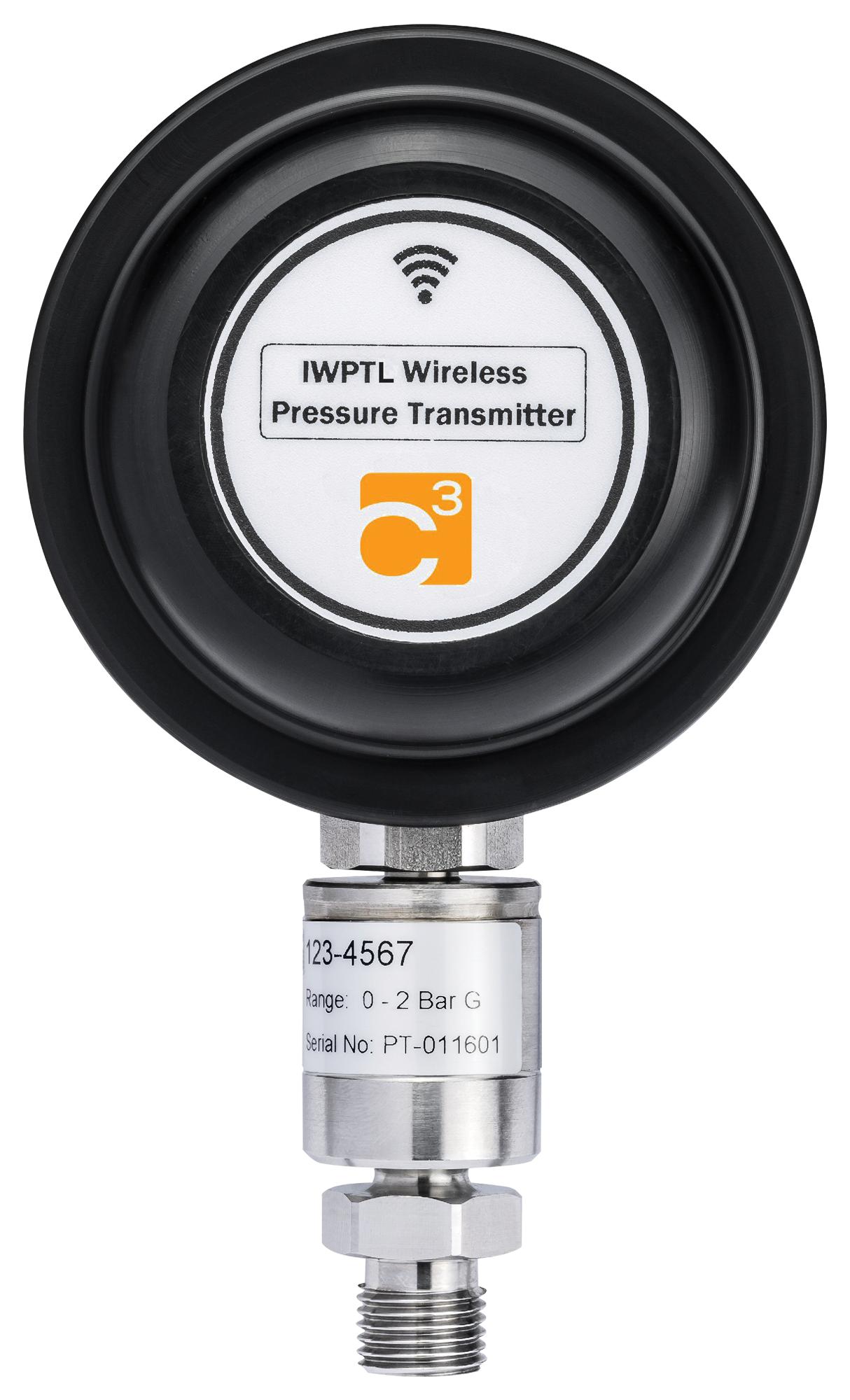

Sensata IWPTLUAP01000 Wireless Pressure Transducer
The IWPTLU series is a low-range industrial wireless pressure transducer designed as a cost-effective replacement for traditional wired pressure sensors. It features a piezo-resistive stainless steel sensor housed in a stainless steel body, suitable for measuring pressures from 0 to 10 PSI ABS. The device offers output options of 1-5 VDC or 4-20 mA, supporting line-of-sight communication up to 1,640 feet depending on environmental conditions. It is ideal for applications such as environmental monitoring, facilities management, asset tracking, and service contracts where easy installation in inaccessible or expensive environments is required. The transducer includes simple DIL switch pairing with single or five-channel receivers, user-selectable transmission update rates, and comes with receiver clean contacts for process alarm functions. It also boasts a five-year battery life at a 10-second transmission interval.
Sensata IWPTLUAP01000 Wireless Pressure Transducer Specifications:
- Pressure Range: 0-10 PSI absolute
- Sensor: Piezo-resistive stainless steel
- Housing Material: 316 stainless steel
- Output Options: 1-5 VDC or 4-20 mA
- Wireless Communication Frequency: 2.4 GHz
- Line-of-sight Range: Up to 1640 ft
- Battery Type: Lithium C cell (user replaceable)
- Battery Life: 5 years at 10 sec update rate
- Operating Temperature: -20°C to +80°C
- Ingress Protection: IP68
- Dimensions: 51.50 mm x 60 mm (nominal)
- Weight: 310 g including battery
- Certifications: EN 300 328 V1.8.1, CE
- Housing Material: Plastic enclosure
Buy the Sensata Series IWPTLU Wireless Pressure Transducer: IWPTLUAP01000
Order the Sensata IWPTLU wireless pressure transducer today online and enhance your environmental monitoring, facility management, or asset tracking systems. With easy DIL switch pairing, line-of-sight communication up to 1640 feet, and a five-year battery life at a 10-second update rate, it provides reliable pressure measurements for liquids and gases. Its stainless steel housing and IP68 protection make it suitable for harsh environments. Whether for installation in inaccessible locations or temporary service applications, buy now to ensure seamless, wireless pressure monitoring with optimal performance and durability.
Buy Sensata IWPTLUAP01000 now and experience unmatched reliability and performance with easy wireless pressure measurement.
