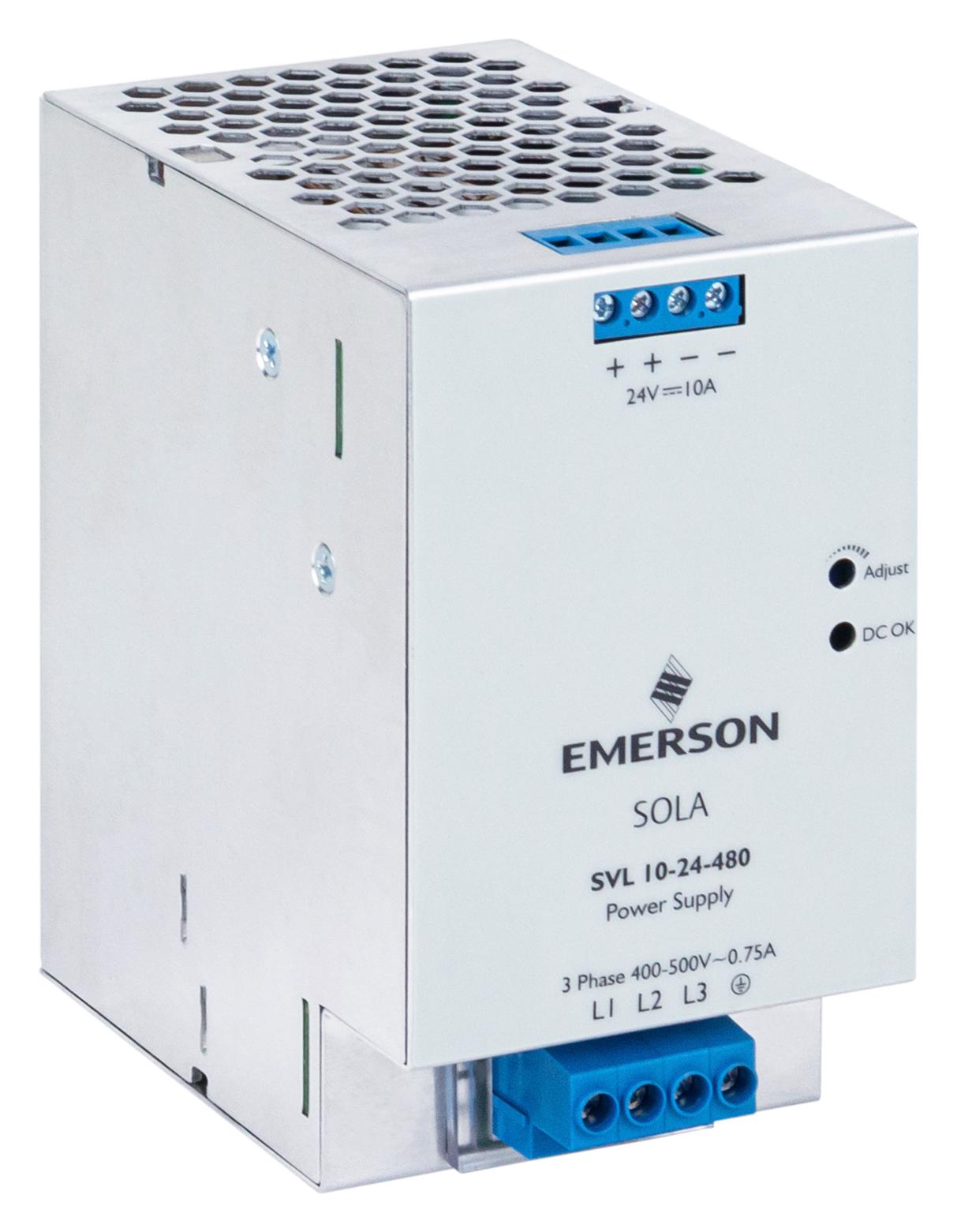

SolaHD SVL1024480 Power Supply
The SolaHD SVL Series power supplies are reliable, DIN rail-mounted units designed for high-volume, controlled environments, delivering 24 Vdc output from 5A to 40A. These three-phase input models feature multiple protections, including short circuit, over-voltage, over-current, and over-temperature, along with power factor correction and convection cooling for efficiency. Certified for hazardous environments with Class I Div 2 ratings, they are suitable for industrial manufacturing, chemical processing, and oil and gas applications. The units incorporate LED diagnostic indicators for quick status assessment and offer a two-year warranty for dependable operation.
SolaHD SVL1024480 Power Supply Specifications:
- Input Voltage Range: 236-600 Vac (2 Phase), 400-500 Vac (3-Phase)
- Input Frequency: 50/60 Hz
- Efficiency: Up to 92%
- Output Voltage: 24 V (24-28 Vdc Adjustable), ±2%
- Ripple and Noise: <150mVpp to <240mVpp
- Output Current: 5A, 10A, 20A, 40A
- Max Power: 120W, 240W, 480W, 960W
- Regulation: <0.5% Line, <1.0% Load
- Operating Temperature: -25°C to +80°C
- Protection: Overvoltage, Overload, Over Temperature, Short Circuit
- MTBF: >800,000 hours
- Housing: Metal, DIN rail mount
- Certifications: UL, CSA, IEC/EN60950, IEC/EN62368-1, RoHS
- Environmental: Non-Condensing Humidity 5-95%, Storage -40°C to +85°C
Buy the Buy SOLAHD SVL Series Power Supplies Part Number SVL1024480 Online
Get the SOLAHD SVL Series power supplies online today for robust, efficient, and certified power solutions tailored for industrial manufacturing and hazardous locations. Designed with advanced protections, adjustable outputs, and DIN rail mounting, these units support high power demands from 5A to 40A at 24 Vdc, ensuring dependable operation. With a proven MTBF exceeding 800,000 hours and a comprehensive two-year warranty, purchasing online guarantees quick delivery and professional support, making them ideal for demanding industrial and hazardous environments.
Order your SOLAHD SVL Series SVL1024480 power supply today and ensure reliable, efficient power for your industrial applications, even in hazardous environments.
Frequently Asked Questions
Where can I buy SolaHD SVL1024480?
You can click on the BUY or RFQ button to purchase SVL1024480 from an authorized SolaHD distributor.
How do I troubleshoot issues or seek technical support for part SVL1024480?
You can download the SVL1024480 datasheet or visit the SolaHD website for support.
Who is the manufacturer of SVL1024480?
SolaHD
