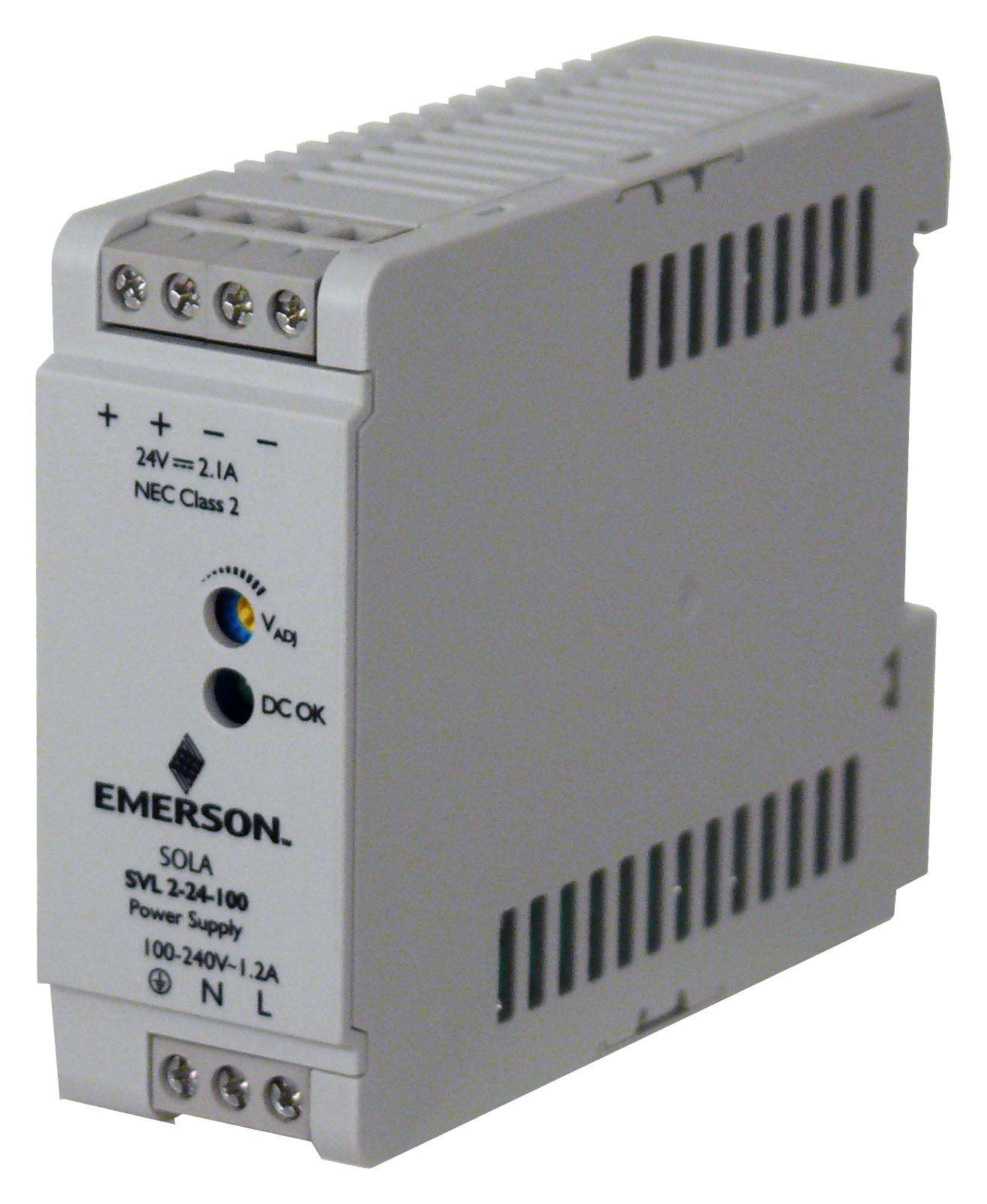

SolaHD SVL224100 Industrial Power Supply
The SVL series power supplies are compact, reliable units designed for high-performance industrial applications. With a wide input voltage range from 85 to 264 Vac and efficiencies up to 89%, they ensure stable power delivery for sensitive equipment like test instruments, vending machines, and printers. These power supplies feature protections against overvoltage, overload, and short circuits, and operate effectively across temperatures from -20°C to +70°C. Their small DIN rail mount design facilitates easy installation in confined spaces, making them ideal for automation, semiconductor fabrication, and other demanding environments.
SolaHD SVL224100 Industrial Power Supply Specifications:
- Input Voltage Range: 85-264 Vac
- Frequency: 50/60 Hz
- Efficiency: up to 89%
- Output Voltage Range: 5-28 V depending on model
- Output Power: 15W to 480W
- Nominal Output Current: 1.25 A to 25 A
- Ripple & Noise: <75 mVp-p
- Overvoltage Protection: 30-74 V (latching)
- Overload Protection: hiccup mode
- Short Circuit Protection: auto-recovery
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Dimensions: approximately 2.95 x 0.82 inches (75 x 21 mm) to 4.87 x 1.77 inches (124 x 45 mm)
- Weight Range: 110 g to 1.45 lb (approx. 50 g to 660 g)
- Certifications: UL, CSA, CE, RoHS compliant
- Protection Class: IEC/EN 60950-1, UL 508
Buy the SOLA+HD Series SVL Power Supply: SVL224100
Enhance your systems with the SOLA+HD Series SVL power supply, model SVL224100. Designed for industrial environments, it offers a wide input voltage range, high efficiency up to 89%, and multiple protections including overvoltage, overload, and short circuit. Its compact DIN rail mounting makes installation straightforward even in tight spaces. Operating reliably from -20°C to +70°C, this power supply is perfect for automation, instrumentation, vending, and semiconductor fabrication. Purchase online today for dependable power and optimal performance in your projects.
Order your SOLA+HD Series SVL power supply, SVL224100 today and ensure reliable power for your industrial automation and manufacturing projects.
Frequently Asked Questions
Where can I buy SolaHD SVL224100?
You can click on the BUY or RFQ button to purchase SVL224100 from an authorized SolaHD distributor.
How do I troubleshoot issues or seek technical support for part SVL224100?
You can download the SVL224100 datasheet or visit the SolaHD website for support.
Who is the manufacturer of SVL224100?
SolaHD
