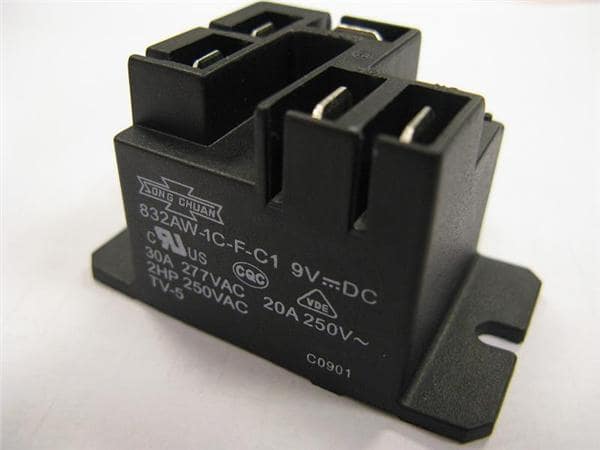

Song Chuan 832AW1CFC124VDC Power Relay
This power relay features a 24 V DC coil voltage with a Single Pole Double Throw (SPDT) contact configuration, capable of switching 30 A current. It is designed for quick terminal mounting and operates as a single-side stable relay, suitable for various control applications.
Song Chuan 832AW1CFC124VDC Power Relay Specifications:
- Coil Voltage: 24 V DC
- Contact Configuration: Single Pole Double Throw (SPDT)
- Contact Rating: 30A at 240VAC, 20A at 250VAC, 15A at 277VAC, 30VDC
- Contact Resistance: 50 mΩ Max
- Insulation Resistance: 1000 MΩ Min. at DC 500V
- Dielectric Strength: 1500Vrms between contact and coil, 2500Vrms high dielectric strength type
- Operation Time: Max. 5 ms
- Mechanical Life: 10,000,000 operations
- Electrical Life: 100,000 operations at rated load
- Operating Ambient Temperature: -55°C to +85°C
- Weight: Approximately 36 g
- Certifications: UL, CSA, VDE approved
Buy the Buy SONG CHUAN Power Relay Part Number 832AW1CFC124VDC Online
Get the SONG CHUAN Power Relay with 24V DC coil, SPDT contact configuration, and 30A switching capacity. Perfect for industrial automation, control systems, HVAC, and more. Enjoy fast online ordering, trusted quality, and prompt delivery to keep your projects running smoothly. Designed with durability and safety compliance, this relay offers high dielectric strength and long lifespan, making it ideal for demanding environments. Secure your control applications today with an easy online purchase and experience dependable operation and superior control performance.
Order your SONG CHUAN Series832AW1CFC124VDC power relay today and ensure reliable control integration for your industrial projects.
Frequently Asked Questions
Where can I buy Song Chuan 832AW1CFC124VDC?
You can click on the BUY or RFQ button to purchase 832AW1CFC124VDC from an authorized Song Chuan distributor.
How do I troubleshoot issues or seek technical support for part 832AW1CFC124VDC?
You can download the 832AW1CFC124VDC datasheet or visit the Song Chuan website for support.
Who is the manufacturer of 832AW1CFC124VDC?
Song Chuan
