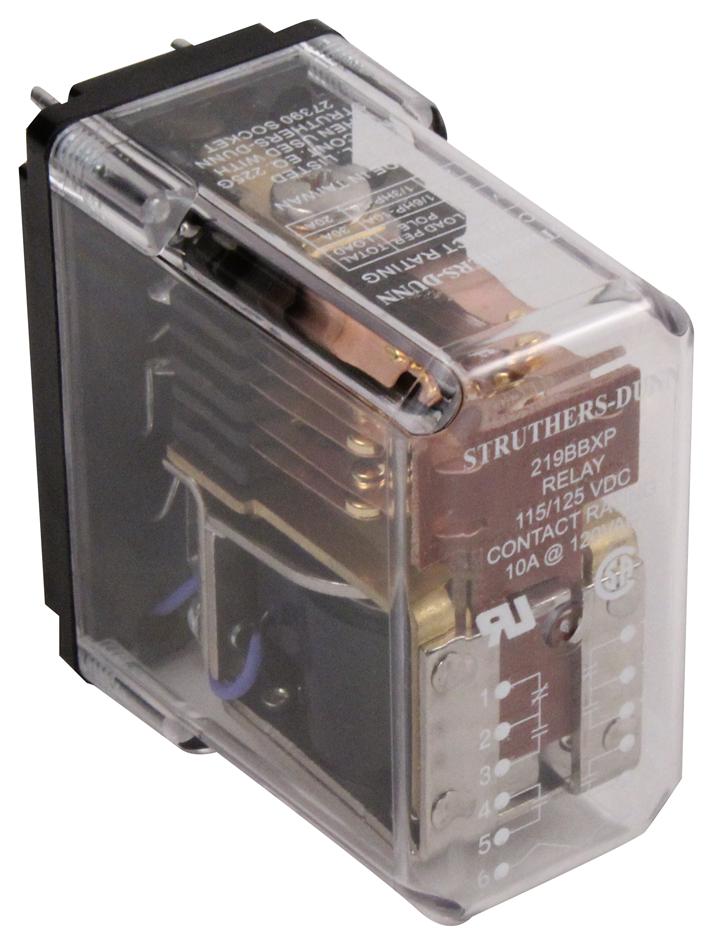

STRUTHERS-DUNN 219BBXP115125VDC Industrial Relay
This general-purpose relay features a coil voltage of 110-125 VDC, with a contact configuration including 2 normally open (NO) and 2 normally closed (C) contacts in a DPST-NO + DPDT arrangement. It can handle a current of up to 30 amps and is designed for plug-in mounting. The relay operates with a single side stable function, ensuring reliable switching performance. Suitable for industrial automation, control panels, and safety systems, this relay offers durability, standard UL listing, and easy installation for various industrial applications.
STRUTHERS-DUNN 219BBXP115125VDC Industrial Relay Specifications:
- Contact Configuration: DPST-NO + DPDT
- Contact Material: Silver Alloy-Gold Diffused
- Contact Rating: 30Amp
- Coil Voltage: 110-125 VDC
- Coil Resistance: 20-96 ohms depending on voltage
- Coil Power: 1.8-2.5W
- Operate Time: 25ms
- Release Time: 20ms
- Dielectric Strength: 500Vrms across open contacts, 1500Vrms between mutually insulated points
- Insulation Resistance: 1,000 Mohms min @ 500VDC
- Temperature Range: Operating -20 to 70°C, Storage -20 to 70°C
- Life Expectancy: Electrical 100,000 operations, Mechanical 10,000,000 operations
- Enclosure: Clear Polycarbonate
- Mounting: Plug-in
- Weight: 8.5 oz (241 grams)
Buy the Buy Struthers-Dunn 219 Series Relay Part Number 219BBXP115125VDC Online
Purchase the Struthers-Dunn 219BBXP115125VDC relay online today to enjoy fast delivery and competitive pricing. This relay offers reliable switching with a 30A contact rating, double-pole configurations, and UL listing. Its plug-in design simplifies installation for control panels and automation systems. Built for durability, it withstands extensive switching cycles, ensuring long-term performance. Whether for industrial automation, safety systems, or control applications, this relay guarantees dependable operation, reducing downtime and maintenance costs. Order now to enhance your project’s reliability and efficiency!
Order your Struthers-Dunn 219BBXP115125VDC relay today and ensure dependable switching performance for your industrial automation projects.
Frequently Asked Questions
Where can I buy STRUTHERS-DUNN 219BBXP115125VDC?
You can click on the BUY or RFQ button to purchase 219BBXP115125VDC from an authorized STRUTHERS-DUNN distributor.
How do I troubleshoot issues or seek technical support for part 219BBXP115125VDC?
You can download the 219BBXP115125VDC datasheet or visit the STRUTHERS-DUNN website for support.
Who is the manufacturer of 219BBXP115125VDC?
STRUTHERS-DUNN
