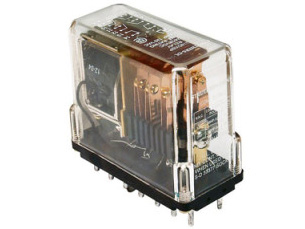

STRUTHERS-DUNN 219XBXP250VDC Industrial DPDT Relay
The Struthers-Dunn 219 series industrial relays are renowned for their durability and performance in demanding environments. These relays are a standard throughout industrial applications, often used as a benchmark for other relays. They offer customizable contact arrangements, including options for nuclear applications with specialized platings and materials. The 219 series is built to meet UL 94-V0 requirements, ensuring fire safety. Available with various coil voltages and contact configurations, these relays are ideal for applications requiring reliable switching and long operational life.
STRUTHERS-DUNN 219XBXP250VDC Industrial DPDT Relay Specifications:
- Contact Material: Silver Alloy-Gold Diffused
- Contact Rating: 10 Amp / 5 Amp
- Coil Power: AC 5VA, DC 1.8-2.5W
- Coil Voltage Tolerance: - AC 85% to 110%, - DC 80% to 110%
- Operate Time: 25 mS max
- Release Time: 20 mS max
- Dielectric Strength: 500Vrms (Across Open Contacts), 1500Vrms (Between mutually insulated points)
- Insulation Resistance: 1,000 Mohms min @ 500VDC
- Operating Temperature (AC): -20 to 60°C
- Operating Temperature (DC): -20 to 70°C
- Storage Temperature: -40 to 105°C
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Mounting Position: Any
- Enclosure Weight: 8.5oz (241 grams)
Buy the 219XBXP-250VDC STRUTHERS-DUNN Industrial DPDT Relay | myMectronic
Purchase the Struthers-Dunn 219XBXP-250VDC Industrial DPDT Relay securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy STRUTHERS-DUNN 219XBXP250VDC?
You can click on the BUY or RFQ button to purchase 219XBXP250VDC from an authorized STRUTHERS-DUNN distributor.
How do I troubleshoot issues or seek technical support for part 219XBXP250VDC?
You can download the 219XBXP250VDC datasheet or visit the STRUTHERS-DUNN website for support.
Who is the manufacturer of 219XBXP250VDC?
STRUTHERS-DUNN
