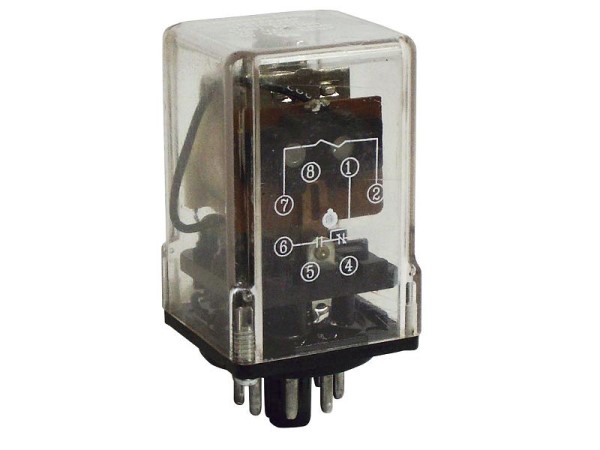

STRUTHERS-DUNN 392XBX48PM50MADC Octal Base SPDT Relay
The Struthers-Dunn 392 series relays are designed for low coil power operation, typically consuming as little as 125mW per pole. These relays are capable of switching DC loads up to 5 amps and can withstand wide voltage ranges without overheating. Available in SPDT, DPDT, and 3PDT configurations, they feature silver contacts, ensuring reliable performance. The 392 series is ideal for socket mounting and finds applications in industrial control systems, automation equipment, and other applications requiring reliable switching capabilities.
STRUTHERS-DUNN 392XBX48PM50MADC Octal Base SPDT Relay Specifications:
- Contact Configuration: Up to 3PDT
- Contact Material: Silver
- Contact Rating: 7.120 / 240VAC Resistive 5 Amp | 28VDC Resistive 5 Amp
- Contact Resistance: 100 milliohms max @ 6VDC
- Coil Power (Single Pole): 125mW
- Coil Power (Double Pole): 250mW
- Coil Power (3 Pole): < 375mW
- Operate Time: 20mS max
- Release Time: 15mS max
- Dielectric Strength: 500Vrms Across Open Contacts, 1500Vrms Between Mutually Insulated Points
- Insulation Resistance: 1,000 Mohms min @ 500VDC
- Operating Temperature: -20 to 70°C (-4 to 158°F)
- Storage Temperature: -40 to 105°C (-40 to 221°F)
- Electrical Life Expectancy: 100,000 operations
- Mechanical Life Expectancy: 10,000,000 operations
- Mounting Position: Any
- Mating Socket: SK-CIR8-DS (1P, 2P), SK-CIR11-DS (3P)
