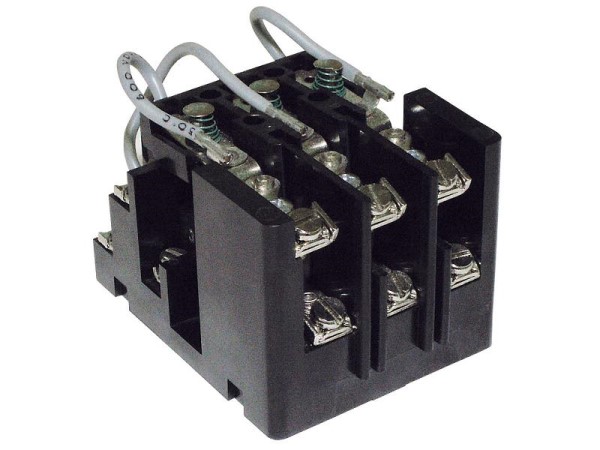

STRUTHERS-DUNN 425XCX120VAC industrial power relay
This power relay features a coil voltage of 110/120 VAC, a 3PDT (three-form C) contact configuration, and a current rating of 25/30 amps. It is designed for base mounting and operates as a single side stable relay, providing reliable switching performance. The relay includes silver alloy contacts, screw terminals, and options for auxiliary contacts. Capable of handling loads up to 30 amps and 1 HP, it supports contact ratings up to 600VAC with an enclosed coil design. It offers durability with 100,000 electrical life cycles and 10 million mechanical operations, suitable for industrial automation applications.
STRUTHERS-DUNN 425XCX120VAC industrial power relay Specifications:
- Contact Configuration: 3PDT (3 Pole Double Throw)
- Contact Material: Silver Alloy
- Contact Rating: 25 Amp / 30 Amp, 1 HP / 4 HP, 600VAC
- Coil Voltage: 110/120 VAC, 6, 12, 24, 120, 240 (AC), 6, 12, 24, 115-125 VDC (DC)
- Nominal Coil Resistance: 1.8 ohms (12V AC), 6.7 ohms (24V AC), 27 ohms (48V AC), 170-2980 ohms (120V AC), 680 ohms (240V AC)
- Drop-out Voltage: 10% of nominal
- Operate Time: 30ms, Release Time: 15ms
- Dielectric Strength: 1500 VRMS across open contacts, 2500 VRMS between insulated points
- Insulation Resistance: 1000 megohms @ 500VAC
- Ambient Operating Temperature: -55°C to 45°C (-67°F to 113°F), Storage Temperature: -55°C to 80°C (-67°F to 176°F)
- Life Expectancy: Electrical 100,000 cycles, Mechanical 10,000,000 cycles
- Mounting Position: Any
- Enclosure: Open
- Weight: 9 oz (250 grams)
Buy the Struthers-Dunn 425XCX120VAC – Reliable Power Relay for Industrial Applications
Purchase the Struthers-Dunn 425XCX120VAC powerful relay online today and secure industry-leading reliability for your control panels and automation systems. Designed for demanding industrial applications, it handles loads up to 30 amps and 600VAC, featuring durable silver alloy contacts and a robust coil design. With excellent dielectric strength, extended life cycles, and versatile mounting options, this relay guarantees dependable operation for controlling motors, lighting, and electrical loads. Streamline your procurement process by ordering online now and enhance your project's efficiency with this high-performance relay.
Order your Struthers-Dunn 425XCX120VAC series power relay today and ensure your industrial automation systems operate reliably with high-current switching capabilities.
Frequently Asked Questions
Where can I buy STRUTHERS-DUNN 425XCX120VAC?
You can click on the BUY or RFQ button to purchase 425XCX120VAC from an authorized STRUTHERS-DUNN distributor.
How do I troubleshoot issues or seek technical support for part 425XCX120VAC?
You can download the 425XCX120VAC datasheet or visit the STRUTHERS-DUNN website for support.
Who is the manufacturer of 425XCX120VAC?
STRUTHERS-DUNN
