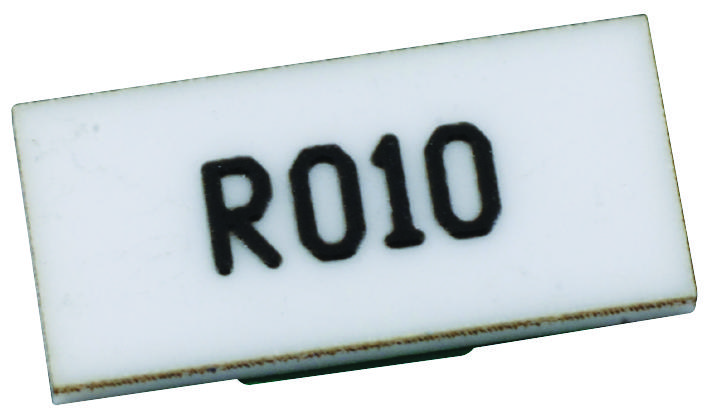

SUSUMU KRL1220ECR056FT5 Low Resistance Chip Resistor
The KRL series consists of metal foil low resistance chip resistors designed for high current sensing applications, with short side terminal configurations. Available in various sizes from 0510 to 50110, these resistors handle power ratings from 0.2W to 5W and resistance values from 5mΩ to 1000mΩ. They feature high-temperature operation up to 175°C, low emf options, and face-down construction with bottom or wrap-around terminals. Suitable for automotive electronics, power supplies, motors, and inverter systems, these resistors meet RoHS standards and comply with AEC-Q200.
SUSUMU KRL1220ECR056FT5 Low Resistance Chip Resistor Specifications:
- Size: 0510 to 50110
- Power ratings: 0.2W to 5W
- Resistance range: 5mΩ to 1000mΩ
- Operating temperature: -55°C to 175°C (high temp variant up to 175°C, low emf up to 155°C)
- Face down construction with bottom or wrap-around terminals
- Material: Metal foil
- Lead Material: RoHS compliant
- Terminal types: D (bottom terminal), E (wrap around terminal), C (high temperature), M (low emf)
Buy the Buy Metal Foil Low Resistance Resistors Part Number KRL1220ECR056FT5 Online
Purchase the high-quality metal foil low resistance chip resistors from the KRL series online to ensure reliable performance in automotive, power supply, motor, and inverter applications. These resistors offer high current handling, temperature tolerance up to 175°C, and multiple terminal configurations for versatile use. Ideal for precise current sensing with resistance values from 5mΩ to 1000mΩ and power ratings up to 5W, they meet industry standards like RoHS and AEC-Q200, delivering durability and efficiency for demanding electronic systems.
Buy Metal foil low resistance chip resistors from the KRL series now and experience high reliability, excellent thermal stability, and precise current sensing performance.
Frequently Asked Questions
Where can I buy SUSUMU KRL1220ECR056FT5?
You can click on the BUY or RFQ button to purchase KRL1220ECR056FT5 from an authorized SUSUMU distributor.
How do I troubleshoot issues or seek technical support for part KRL1220ECR056FT5?
You can download the KRL1220ECR056FT5 datasheet or visit the SUSUMU website for support.
Who is the manufacturer of KRL1220ECR056FT5?
SUSUMU
