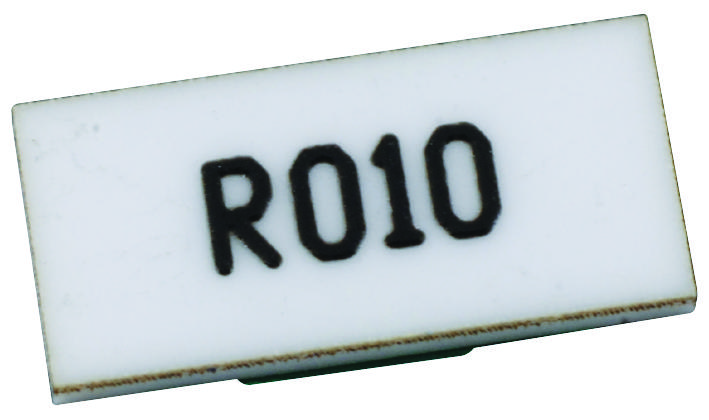

SUSUMU KRL1632ECR005GT5 Metal Foil Resistor
The KRL series are metal foil low resistance chip resistors designed for high current sensing applications, with models offering high temperature operation up to 175°C and low emf options. Available in sizes from 0510 to 50110 and power ratings spanning 0.2W to 5W, these resistors feature face-down construction with bottom or wrap-around terminals. They are RoHS compliant, suitable for automotive electronics, power sources, converters, motors, and inverters, offering reliable performance in demanding environments.
SUSUMU KRL1632ECR005GT5 Metal Foil Resistor Specifications:
- Size: 0510, 0816, 1220, 1632, 2550, 3264, 50110
- Power ratings: 0.2W to 5W
- Resistance value range: 5mΩ to 1000mΩ
- Operating Temperature: -55°C to 175°C
- Temperature Ratings: -55°C to 155°C (low emf models)
- Face-down construction with bottom or wrap-around terminal options
- Material: Metal foil
- RoHS compliant, Lead Halogen free
- Available in terminal types: D (bottom), E (wrap around)
- Compliance: AEC-Q200
- Suitable for high current sensing, automotive electronics, power supply devices, inverters, motors
Buy the Generic KRL1632E – Reliable Metal Foil Resistor for Industrial Applications
Discover the KRL series metal foil low resistance chip resistors offering precise performance, high temperature operation, and robust construction for automotive, power supply, and industrial applications. These resistors are RoHS compliant, feature face-down design with versatile terminal options, and deliver reliable operation across a wide temperature range up to 175°C. Whether for high current sensing or demanding electronic systems, these resistors ensure durable and stable performance, accessible online for fast procurement and integration into your projects.
Get KRL1632E today—built for high current sensing and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy SUSUMU KRL1632ECR005GT5?
You can click on the BUY or RFQ button to purchase KRL1632ECR005GT5 from an authorized SUSUMU distributor.
How do I troubleshoot issues or seek technical support for part KRL1632ECR005GT5?
You can download the KRL1632ECR005GT5 datasheet or visit the SUSUMU website for support.
Who is the manufacturer of KRL1632ECR005GT5?
SUSUMU
