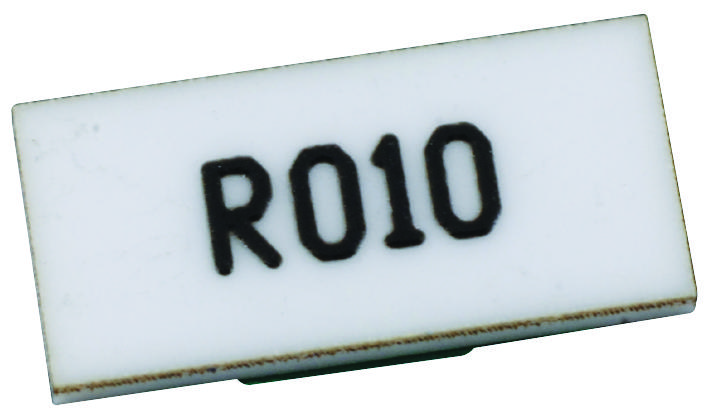

SUSUMU KRL1632ECR015FT1 Low Resistance Chip Resistors
The KRL1632E series are high-quality, low-resistance chip resistors designed for precise current sensing and voltage regulation in automotive electronics, power sources, and automation devices. Available with bottom or wrap-around terminals, these resistors feature high temperature tolerances up to 175°C and low emf options, making them ideal for demanding applications. With power ratings from 0.2W to 5W and resistance values ranging from 5mΩ to 1000mΩ, they combine durability and performance within compact sizes like 1620 and 1632, ensuring reliable operation in electronic circuits.
SUSUMU KRL1632ECR015FT1 Low Resistance Chip Resistors Specifications:
- Size: 1620, 1632
- Power Ratings: 0.2W to 5W
- Resistance Range: 5mΩ to 1000mΩ
- Terminal Types: Bottom (D), Wrap around (E)
- Temperature Tolerance: Up to 175°C for high-temp type, 155°C for low emf type
- Material: Metal foil
- Approvals: RoHS compliant
- Construction: Face down, with options for bottom or wrap-around terminal
- Operating Temperature: -55°C to 175°C
- Resistance Series: E-6, E-12
Buy the KRL Series Power Resistors: KRL1632E
Order KRL1632E series low-resistance chip resistors online now to benefit from high temperature operation up to 175°C, low emf design, and various resistance options from 5mΩ to 1000mΩ, suitable for automotive, power conversion, and automation applications. Featuring face-down construction and terminal options for robust connections, these resistors ensure reliable performance across a wide temperature range. Purchase today for superior durability, precision, and fast delivery, ensuring your electronic projects and systems operate efficiently and safely with top-quality components.
Get KRL1632E series low-resistance chip resistors today—built for high temperature tolerance, precise sensing, and long-lasting durability in electronic circuits.
