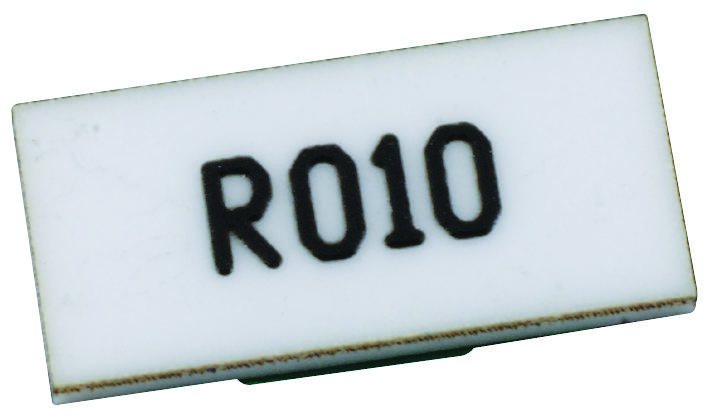

SUSUMU KRL1632ECR100FT1 Metal foil resistor
The KRL series are metal foil low resistance chip resistors designed for high current sensing applications. They feature short-side terminals and are available in sizes ranging from 0510 to 50110, with power ratings from 0.2W to 5W and resistance values from 5mΩ to 1000mΩ. These resistors are RoHS compliant, utilize face-down construction, and offer options for high temperature (up to 175°C) or low emf designs. Suitable for automotive electronics, power sources, and inverter systems, they provide high power handling and reliable performance in demanding environments.
SUSUMU KRL1632ECR100FT1 Metal foil resistor Specifications:
- Size: 0510 to 50110, Power Ratings: 0.2W to 5W, Resistance Range: 5mΩ to 1000mΩ
- Operating Temperature: -55°C to 175°C (high temp models up to 175°C, low emf up to 155°C)
- Construction: Face-down with bottom or wrap-around terminals
- Materials: Metal foil, RoHS compliant, Lead Halogen free
- Terminal Types: D (bottom), E (wrap around), C (high temp), M (low emf)
- Resistance Tolerance: ±1%, ±2%, depending on series
- Voltage Handling: Up to 100V depending on size
- Derating Curve: Power ratio decreasing with ambient temperature
Buy the AVX Series KRL Resistance Chip Resistors: KRL1632ECR100FT1
Get your AVX Series KRL resistance chip resistor now for high-performance current sensing in automotive, power, and inverter systems. These low resistance, face-down construction resistors offer high temperature operation up to 175°C and come in a variety of sizes and power ratings from 0.2W to 5W. RoHS compliant and corrosion-resistant, they are ideal for demanding environments requiring high reliability and precise resistance values. Purchase online today to enhance your electronic designs with these durable and efficient resistors.
Order your AVX Series KRL Resistance Chip Resistors today and ensure reliable high current sensing for demanding electronic applications.
Frequently Asked Questions
Where can I buy SUSUMU KRL1632ECR100FT1?
You can click on the BUY or RFQ button to purchase KRL1632ECR100FT1 from an authorized SUSUMU distributor.
How do I troubleshoot issues or seek technical support for part KRL1632ECR100FT1?
You can download the KRL1632ECR100FT1 datasheet or visit the SUSUMU website for support.
Who is the manufacturer of KRL1632ECR100FT1?
SUSUMU
