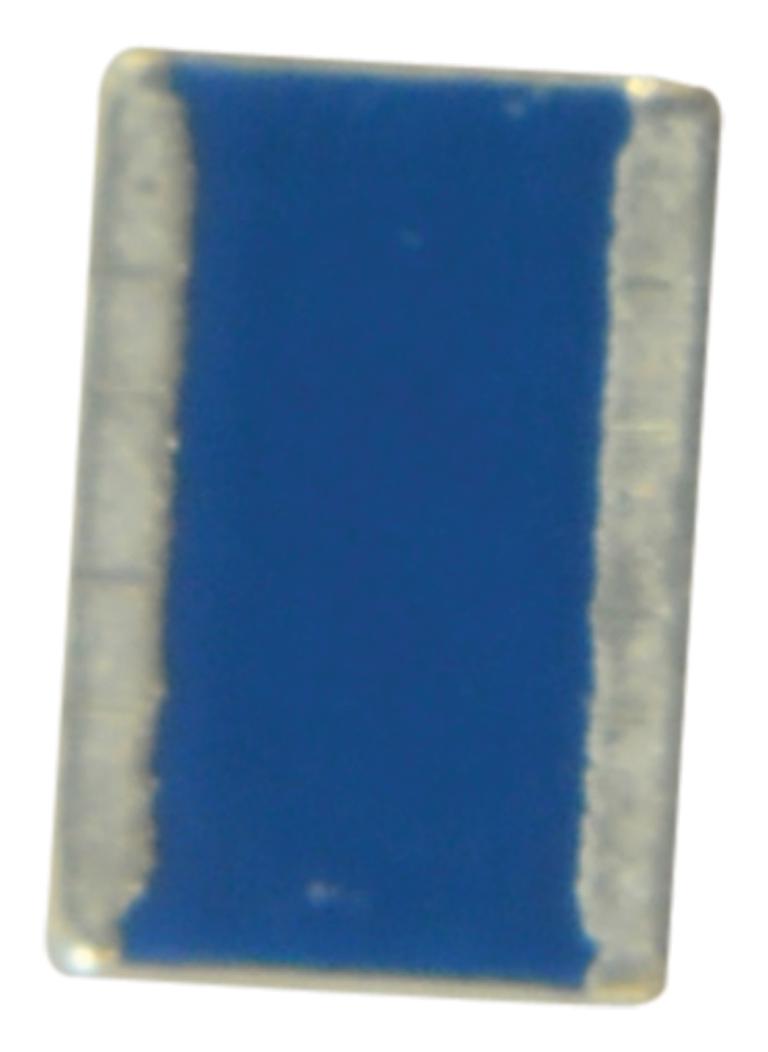

SUSUMU KRL2012ECR005FT1 Current Sensing Chip Resistor
The KRL series consists of metal foil low resistance chip resistors designed for high current sensing applications. These resistors feature long-side terminals, with options for high-temperature operation up to 175°C or low emf performance up to 155°C. Available in sizes from 1608 to 15075 with power ratings ranging from 0.5W to 10W and resistance values between 1mΩ and 500mΩ, they are ideal for automotive electronics, power supplies, converters, motors, and inverter systems. RoHS-compliant and halogen-free, they support face-down construction with bottom or wrap-around terminals.
SUSUMU KRL2012ECR005FT1 Current Sensing Chip Resistor Specifications:
- Size: 1608 to 15075
- Power Ratings: 0.5W to 10W
- Resistance Range: 1mΩ to 500mΩ
- Operating Temperature: Up to 175°C (high temp), up to 155°C (low emf type)
- Terminals: Bottom (D), Wrap-around (E)
- RoHS and halogen-free compliance
- Face-down construction with selectable terminal options
- Resistance tolerance: Typically ±1%
- Dimensions vary based on size, with typical lengths from 0.80mm to 3.80mm and widths from 0.25mm to 0.70mm
- Suitable for high current sensing, automotive electronics, power supplies, and inverter systems
Buy the IEK KRL2012 – Reliable Current Sensing Resistors for Industrial Applications
Order the IEK KRL2012E resistor today and enhance your automotive, power supply, and inverter designs with high current handling and reliable performance. These resistors feature excellent temperature stability, RoHS compliance, and customizable terminal options, making them suitable for a wide range of industrial and electronic applications. Their compact size and high power ratings ensure efficient integration into your circuit, providing precise current sensing and stability. Purchase online now for fast delivery and trusted quality in demanding technical environments.
Get IEK KRL2012E today—built for precision, high current sensing, and long-lasting durability in demanding electronic environments.
Frequently Asked Questions
Where can I buy SUSUMU KRL2012ECR005FT1?
You can click on the BUY or RFQ button to purchase KRL2012ECR005FT1 from an authorized SUSUMU distributor.
How do I troubleshoot issues or seek technical support for part KRL2012ECR005FT1?
You can download the KRL2012ECR005FT1 datasheet or visit the SUSUMU website for support.
Who is the manufacturer of KRL2012ECR005FT1?
SUSUMU
