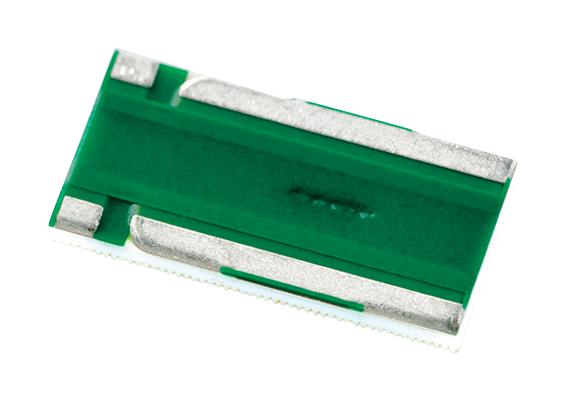

SUSUMU KRL3216T4AMR008FT1 Low Resistance Chip Resistor
The Metal foil low resistance chip resistors from the IEKRL series offer high precision with a separated voltage terminal for accurate voltage measurements. They feature extremely low TCR at 50ppm/°C for 4mΩ resistance, making them ideal for applications requiring stable resistance values over temperature. Power ratings range from 1W to 5W, suitable for automotive electronics, industrial measurement, and high-reliability equipment. Compliant with AEC-Q200 standards, these resistors are available in various sizes and packaging options, offering outstanding performance in demanding environments.
SUSUMU KRL3216T4AMR008FT1 Low Resistance Chip Resistor Specifications:
- Resistance range: 200mΩ to 100Ω
- Resistance tolerance: ±2%
- TCR: +50ppm/°C at 4mΩ resistance
- Power ratings: 1W to 5W
- Size options: KRL3216T4, KRL6432T4, KRL7638T4, KRL9045T4, KRL110507
- Packaging: T1 (1,000 pcs), T5 (5,000 pcs)
- Terminal voltage: Separated voltage terminal for precise measurement
- Application: Automotive, industrial measurement, power devices, inverters
- Compliance: AEC-Q200, RoHS
- Operating temperature: -55°C to +155°C
- Material: Metal foil, high reliability
Buy the IEKRL Series Low Resistance Chip Resistors: KRL3216T4AMR008FT1
Experience the exceptional reliability and precise performance of our low resistance chip resistors. Designed with separated voltage terminals and stable TCR characteristics, these resistors provide excellent measurement accuracy. With power ratings from 1W to 5W and compliance with AEC-Q200 standards, they are ideal for automotive, industrial, and power electronics. Available in various sizes and packaging options, our resistors ensure durability and stability in demanding environments. Order online today for fast shipping and trusted quality.
Get IEKRL Series low resistance chip resistors today—built for precision, stability, and long-lasting durability in automotive and industrial electronics.
Frequently Asked Questions
Where can I buy SUSUMU KRL3216T4AMR008FT1?
You can click on the BUY or RFQ button to purchase KRL3216T4AMR008FT1 from an authorized SUSUMU distributor.
How do I troubleshoot issues or seek technical support for part KRL3216T4AMR008FT1?
You can download the KRL3216T4AMR008FT1 datasheet or visit the SUSUMU website for support.
Who is the manufacturer of KRL3216T4AMR008FT1?
SUSUMU
