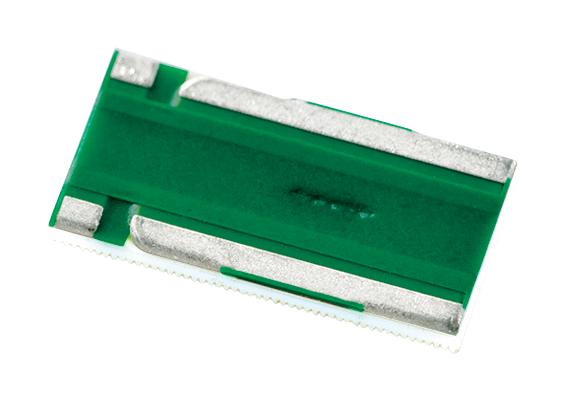

SUSUMU KRL3216T4AMR068FT1 Low Resistance Chip Resistor
The Metal Foil Low Resistance Chip Resistors from the IEKRL series are precision four-terminal components designed for high accuracy and stability in electronic circuits. They feature separated voltage terminals for precise voltage measurement and exhibit a very low temperature coefficient of resistance of +50ppm/°C at 4mΩ resistance.Rated power capacities range from 1W to 5W, suitable for applications in automotive, industrial measurement, and power electronics. Their RoHS compliance ensures environmentally friendly manufacturing, making them ideal for high-performance electronic assemblies demanding low resistance and high thermal stability.
SUSUMU KRL3216T4AMR068FT1 Low Resistance Chip Resistor Specifications:
- Resistance range: 200mΩ to 100mΩ
- Resistance tolerance: ±2%
- Temperature coefficient: +50ppm/°C at 4mΩ resistance
- Power ratings: 1W to 5W
- Size options: KRL3216T4, KRL6432T4, KRL7638T4, KRL9045T4, KRL110507
- Packaging: T1 (1,000 pcs), T5 (5,000 pcs)
- Voltage Terminal: Separated for precise measurement
- Operating temperature: -55°C to +155°C
- Construction: Metal foil resistor with low EMF (type M)
- Compliance: RoHS, AEC-Q200
- Applications include automotive electronics, industrial measurement, power devices, inverters, smartphones, PCs, HDDs, and AV equipment
Buy the IEKRL Series Low Resistance Chip Resistors: KRL3216T4AMR068FT1
Purchase the Low Resistance Chip Resistor from the IEKRL series online today. Designed for precision measurement, stability, and durability, these resistors feature separated voltage terminals for accurate voltage readings. Suitable for automotive electronics, industrial measurement, and power applications, they come with power ratings from 1W to 5W and are RoHS compliant. Manufactured with advanced metal foil technology, they deliver low resistance, excellent temperature stability, and high performance in harsh environments. Order now for reliable, high-quality electronic components for your projects.
Get IEKRL Series low resistance chip resistor KRL3216T4AMR068FT1 today—built for precision, stability, and long-lasting performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy SUSUMU KRL3216T4AMR068FT1?
You can click on the BUY or RFQ button to purchase KRL3216T4AMR068FT1 from an authorized SUSUMU distributor.
How do I troubleshoot issues or seek technical support for part KRL3216T4AMR068FT1?
You can download the KRL3216T4AMR068FT1 datasheet or visit the SUSUMU website for support.
Who is the manufacturer of KRL3216T4AMR068FT1?
SUSUMU
