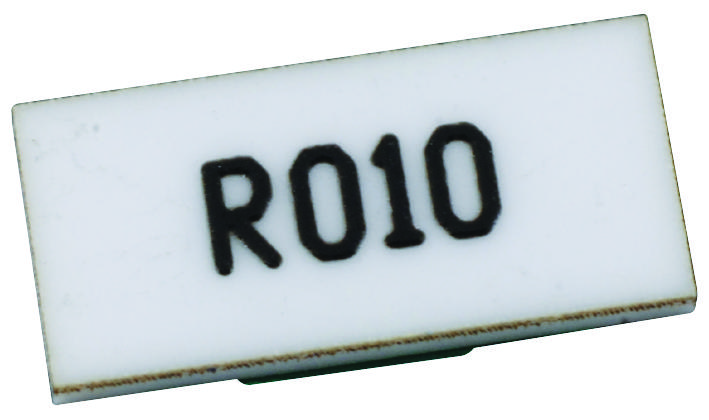

SUSUMU KRL3264ECR009GT1 Low Resistance Chip Resistor
The KRL series are metal foil low resistance chip resistors designed for high current sensing applications. These resistors feature short-side terminals and are available in sizes ranging from 0510 to 50110, with power ratings from 0.2W to 5W and resistance values from 5mΩ to 1000mΩ. They offer high operating temperature options up to 175°C, low emf characteristics, and face-down construction with choice of terminal types. Suitable for automotive electronics, power supplies, motors, and inverter systems, these resistors meet AEC-Q200 standards for reliability.
SUSUMU KRL3264ECR009GT1 Low Resistance Chip Resistor Specifications:
- Size: 0510 to 50110
- Power Ratings: 0.2W to 5W
- Resistance Range: 5mΩ to 1000mΩ
- Operating Temperature: -55°C to 175°C (high temp option), -55°C to 155°C (low emf type)
- Terminal Types: Bottom terminal (D), Wrap around terminal (E)
- Face down construction, choice of terminal configuration
- RoHS compliant, Halogen free
- Meet AEC-Q200 automotive standards
- Resistance tolerance: Various series, including E-6/E-12
- Voltage ratings dependent on size and resistance value
- Dimensions vary per size, with detailed derating curves provided
Buy the ACME Series KRL Low Resistance Chip Resistor: KRL3264ECR009GT1
Purchase the ACME Series low resistance chip resistor KRL3264ECR009GT1 online today. Designed for high current sensing, these resistors feature short-side terminals, high operating temperature up to 175°C, and a variety of sizes and power ratings. Ideal for automotive electronics, power supplies, and motor control, they comply with AEC-Q200 standards. Enjoy fast delivery, competitive pricing, and trusted quality when ordering online. Enhance your projects with durable, high-performance resistors tailored for demanding environments.
Order your ACME Series KRL3264ECR009GT1 today and benefit from reliable high-current sensing for your automotive or industrial projects.
Frequently Asked Questions
Where can I buy SUSUMU KRL3264ECR009GT1?
You can click on the BUY or RFQ button to purchase KRL3264ECR009GT1 from an authorized SUSUMU distributor.
How do I troubleshoot issues or seek technical support for part KRL3264ECR009GT1?
You can download the KRL3264ECR009GT1 datasheet or visit the SUSUMU website for support.
Who is the manufacturer of KRL3264ECR009GT1?
SUSUMU
