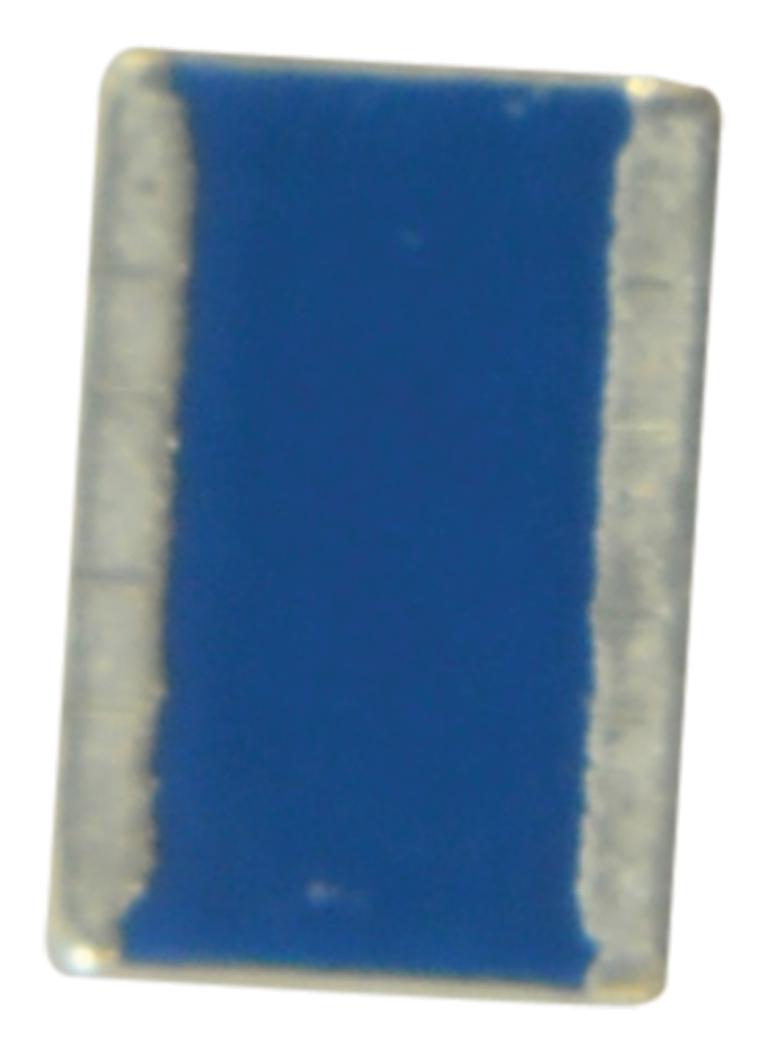

SUSUMU KRL6432ECR022FT1 Metal Foil Resistor
The KRL series metallic foil low resistance chip resistors are designed for high current sensing with long side terminals. They are available in various sizes from 1608 to 15075, with power ratings from 0.5W to 10W and resistance values ranging from 1 milliohm to 500 milliohms. These resistors are compliant with AEC-Q200, RoHS, and lead halogen-free standards. They feature high temperature operation up to 175°C, low emf types, and come with face-down construction with options for bottom-only or wrap-around terminals suitable for automotive, power supply, inverter, and automation applications.
SUSUMU KRL6432ECR022FT1 Metal Foil Resistor Specifications:
- Size: 1608 to 15075
- Power Ratings: 0.5W to 10W
- Resistance Range: 1m to 500mQ
- Operating Temperature: up to 175°C for high temp type, 155°C for low emf type
- Face down construction with bottom or wrap-around terminals
- Lead: Halogen free, RoHS compliant
- Face-down and face-up mounting options
- Resistance Tolerance: ±1%, ±2%, ±5%
- Available in series KRL1608, KRL2012, KRL3216, KRL5025 and others
- Standards: AEC-Q200, RoHS, Halogen Free
Buy the Iek Series KRL Metal Foil Resistors: KRL6432ECR022FT1
Order the IEK Series metal foil low resistance chip resistor KRL6432ECR022FT1 online today. Designed for high current sensing and durability, these resistors operate at temperatures up to 175°C, making them perfect for automotive, power supply, inverter, and automation applications. With resistance values from 1m to 500mQ, various sizes, and compliance with RoHS and AEC-Q200 standards, they ensure reliable performance. Purchase online now for quick delivery and exceptional quality engineered for demanding electronic systems.
Get IEK series KRL6432ECR022FT1 today—built for high current sensing with low resistance and high temperature endurance, ideal for automotive electronics and power sources.
Frequently Asked Questions
Where can I buy SUSUMU KRL6432ECR022FT1?
You can click on the BUY or RFQ button to purchase KRL6432ECR022FT1 from an authorized SUSUMU distributor.
How do I troubleshoot issues or seek technical support for part KRL6432ECR022FT1?
You can download the KRL6432ECR022FT1 datasheet or visit the SUSUMU website for support.
Who is the manufacturer of KRL6432ECR022FT1?
SUSUMU
