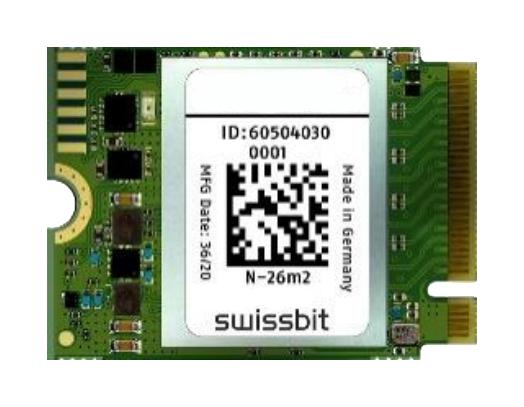

SWISSBIT SFPC010GM1EC1TOI5EA1PSTD High-Performance NVMe SSD

The Swissbit N-26m2 SSD supports high-speed NVMe 1.3 protocol, PCIe Gen3 x2 interface, and 3D TLC NAND flash memory, delivering reliable, high-performance storage. Designed for embedded applications with rugged industrial temperatures from -40°C to 85°C, it features enhanced endurance, data security with AES256 encryption, and data protection features like E2E. Compact M.2 form factor (2230/2242/2280), supports multiple capacities from 5GB to 160GB, with low power consumption, supporting demanding workloads while ensuring data integrity and longevity.

Buy Swissbit NVMe SSD Part Number SFPC010GM1EC1TOI5EA1PSTD Online
View SFPC010GM1EC1TOI5EA1PSTDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFPC010GM1EC1TO-I-5E-A1P-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFPC010GM1EC1TOI5EA1PSTD High-Performance NVMe SSD Specifications:

  • Form Factor: M.2 (2230/2242/2280, S4)
  • Capacities: 5 GBytes, 10 GBytes, 20 GBytes, 40 GBytes, 80 GBytes, 160 GBytes
  • Interface: PCI Express Gen3 x2, supports x1, x2, and x4 modes
  • Protocol: NVMe 1.3
  • Sequential Read Speed: Up to 1,773 MB/s
  • Sequential Write Speed: Up to 827 MB/s
  • Random Read 4K IOPS: Up to 140,000
  • Random Write 4K IOPS: Up to 131,000
  • Operating Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Voltage: 3.3V ±45%, supported voltages 1.8V and 0.9V
  • Reliability: MTBF > 2,000,000 hours, Data Retention: 10 years at 40°C
  • Endurance: Up to 1550 TBW for 80GB capacity, based on workload
  • Shock & Vibration: 1500g / 50g
  • Encryption: AES256 (on request)
  • Compliance: RoHS, REACh, WEEE, EU EMC

Buy the Buy Swissbit NVMe SSD Part Number SFPC010GM1EC1TOI5EA1PSTD Online

Order the Swissbit SFPC010GM1EC1TOI5EA1PSTD today to benefit from a robust industrial-grade NVMe SSD offering rapid data transfer speeds up to 1,773 MB/s, capacious storage options, and high endurance—ideal for embedded computing applications. Its support for AES256 encryption and comprehensive data protection ensures security and integrity. With operating temperatures from -40°C to 85°C, this compact M.2 device guarantees reliable performance across harsh environments. Purchase online now for fast delivery and professional support.

Buy Swissbit SFPC010GM1EC1TOI5EA1PSTD now and experience unmatched reliability and high-speed NVMe performance in demanding industrial environments.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC010GM1EC1TOI5EA1PSTD?

You can click on the BUY or RFQ button to purchase SFPC010GM1EC1TOI5EA1PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC010GM1EC1TOI5EA1PSTD?

You can download the SFPC010GM1EC1TOI5EA1PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC010GM1EC1TOI5EA1PSTD?

SWISSBIT
