SWISSBIT SFPC080GM1EC4TOI6F51PSTD Industrial NVMe SSD
The Swissbit N-26m2 SSD leverages M.2 and NVMe standards, supporting PCIe Gen3 x2 interface speeds with capacities from 5GB up to 160GB. It features high sequential and random read/write performance, durable 3D TLC NAND flash, and data protection via E2E and AES256 encryption. Designed for industrial applications, it withstands operating temperatures from -40°C to 85°C, with reliable endurance, low power consumption, and compliance to multiple standards. The compact form factor, mechanical robustness, and advanced firmware make it suitable for embedded computing and high-speed data transfer needs.
SWISSBIT SFPC080GM1EC4TOI6F51PSTD Industrial NVMe SSD Specifications:
- Form Factor: M.2 2230/2242/2280, 30/42/80 mm x 22 mm x 2.63 mm
- Capacities: 5GB, 10GB, 20GB, 40GB, 80GB, 160GB
- Interface: PCIe Gen3 x2, NVMe 1.3 support
- Sequential Read/Write: up to 1,773 MB/s / 827 MB/s
- Random Read/Write: up to 140,000 / 131,000 IOPS
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Power Supply: 3.3V, 1.8V, 0.9V
- MTBF: > 2,000,000 hours
- Endurance: up to 1550 TBW (80GB capacity)
- Dimensions: Length 30/42/80 mm, Width 22 mm, Thickness max 2.63 mm
- Data Retention: 10 Years at 25°C
- Compliances: PCIe 3.1, NVMe 1.3, RoHS, WEEE, REACh, EMC

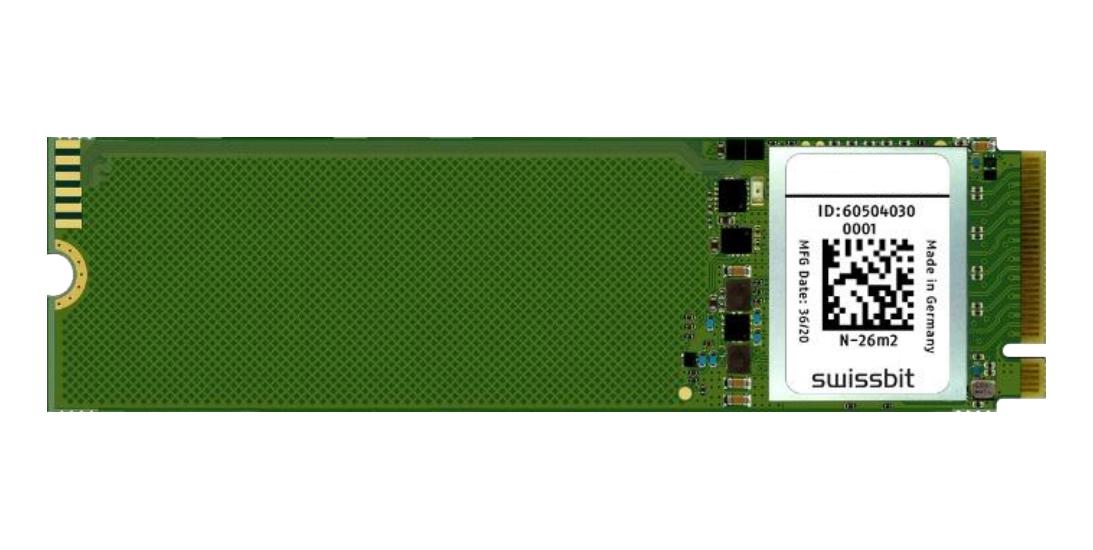

Buy the Buy Swissbit SSD Part Number SFPC080GM1EC4TOI6F51PSTD Online
Purchase the Swissbit industrial NVMe SSD SFPC080GM1EC4TOI6F51PSTD online now and experience high-performance, rugged durability, and advanced data protection. Designed for demanding industrial environments, this compact M.2 SSD offers incredible read/write speeds up to 1,773 MB/s and 140,000 IOPS. Its temperature range from -40°C to 85°C ensures reliable operation under extreme conditions. With low power consumption, high endurance, and comprehensive compliance, it is ideal for embedded systems and high-speed data transfer applications. Order today for fast delivery and superior storage performance.
Order your Swissbit Series SFPC080GM1EC4TOI6F51PSTD SSD today and enhance your industrial storage with high-speed, reliable NVMe performance.
Frequently Asked Questions
Where can I buy SWISSBIT SFPC080GM1EC4TOI6F51PSTD?
You can click on the BUY or RFQ button to purchase SFPC080GM1EC4TOI6F51PSTD from an authorized SWISSBIT distributor.
How do I troubleshoot issues or seek technical support for part SFPC080GM1EC4TOI6F51PSTD?
You can download the SFPC080GM1EC4TOI6F51PSTD datasheet or visit the SWISSBIT website for support.
Who is the manufacturer of SFPC080GM1EC4TOI6F51PSTD?
SWISSBIT
