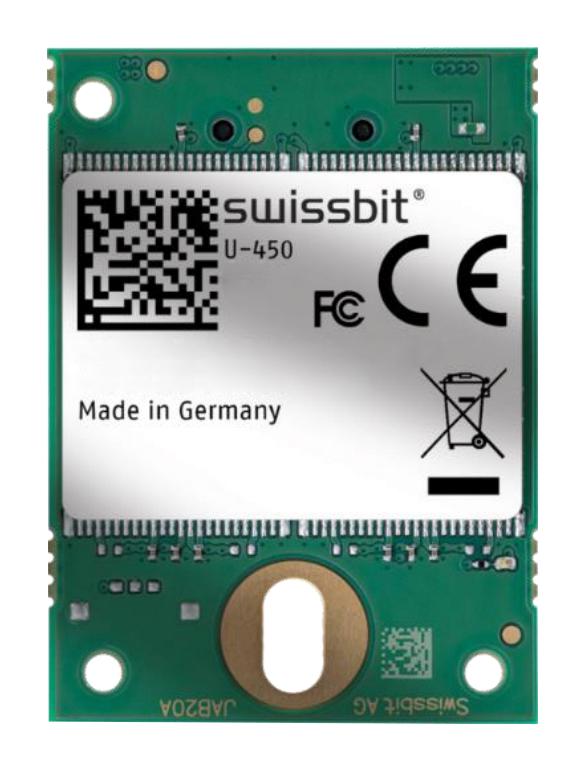

SWISSBIT SFUI2048J2AB2TOIMS2A1STD Industrial USB Flash Drive

The Swissbit U-450 Industrial USB flash drive is a high-performance, reliable Storage device designed for embedded and industrial applications. It features a page-based Flash Translation Layer optimized for high endurance and efficient performance. Compatible with USB 2.0 and backward compatible with USB 1.1, it offers a 2GB capacity in a compact form factor measuring 26.65mm by 36.8mm. The drive includes detailed S.M.A.R.T. support, an operation-indicating LED, in-field firmware updates, and a data retention lifespan of up to 10 years, ensuring durability and secure data storage in demanding environments.

Swissbit SFUI2048J2AB2TOIMS2A1STD – Reliable Industrial USB Flash Drive for Embedded Applications
View SFUI2048J2AB2TOIMS2A1STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFUI2048J2AB2TO-I-MS-2A1-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFUI2048J2AB2TOIMS2A1STD Industrial USB Flash Drive Specifications:

  • Form Factor: 36.8mm x 26.65mm
  • Connector: 2.54mm pitch, 7.5mm long; 2.00mm pitch, 3.68mm long
  • Maximum component height: 1.2mm on connector side, 1.4mm on flash side
  • Capacity: 2GB
  • Flash Management: Page-based Flash Translation Layer with subpage management
  • Interfaces: USB 2.0 compatible, backward compatible with USB 1.1
  • Temperature Range (Commercial): 0°C to 70°C
  • Temperature Range (Industrial): -40°C to 85°C
  • Data Retention: Up to 10 years
  • Features: S.M.A.R.T. support, LED for operation indication, firmware update capability
  • Mechanical Features: Optional grounded oval hole, three mounting holes, compact design
  • Mechanical Tolerance: +0.15mm
  • Power Supply Voltage: 3.3V typical, max 5.0V
  • Maximum Write Current: 75mA
  • Maximum Read Current: 75mA
  • Idle Current: 287μA
  • Durability: High endurance with optimized firmware algorithms

Buy the Swissbit SFUI2048J2AB2TOIMS2A1STD – Reliable Industrial USB Flash Drive for Embedded Applications

Secure your industrial data with the Swissbit industrial USB flash drive. Featuring high endurance, efficient firmware, and long-term data retention, this device ensures reliable performance for embedded and demanding environments. Its compact form factor and comprehensive features like S.M.A.R.T. support and firmware updates make it ideal for industrial applications. Purchase online now to upgrade your infrastructure with a durable, high-performance storage solution designed for longevity and optimal data security.

Buy Swissbit SFUI2048J2AB2TOIMS2A1STD now and experience unmatched reliability and performance in your industrial and embedded systems.

Frequently Asked Questions

Where can I buy SWISSBIT SFUI2048J2AB2TOIMS2A1STD?

You can click on the BUY or RFQ button to purchase SFUI2048J2AB2TOIMS2A1STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFUI2048J2AB2TOIMS2A1STD?

You can download the SFUI2048J2AB2TOIMS2A1STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFUI2048J2AB2TOIMS2A1STD?

SWISSBIT
