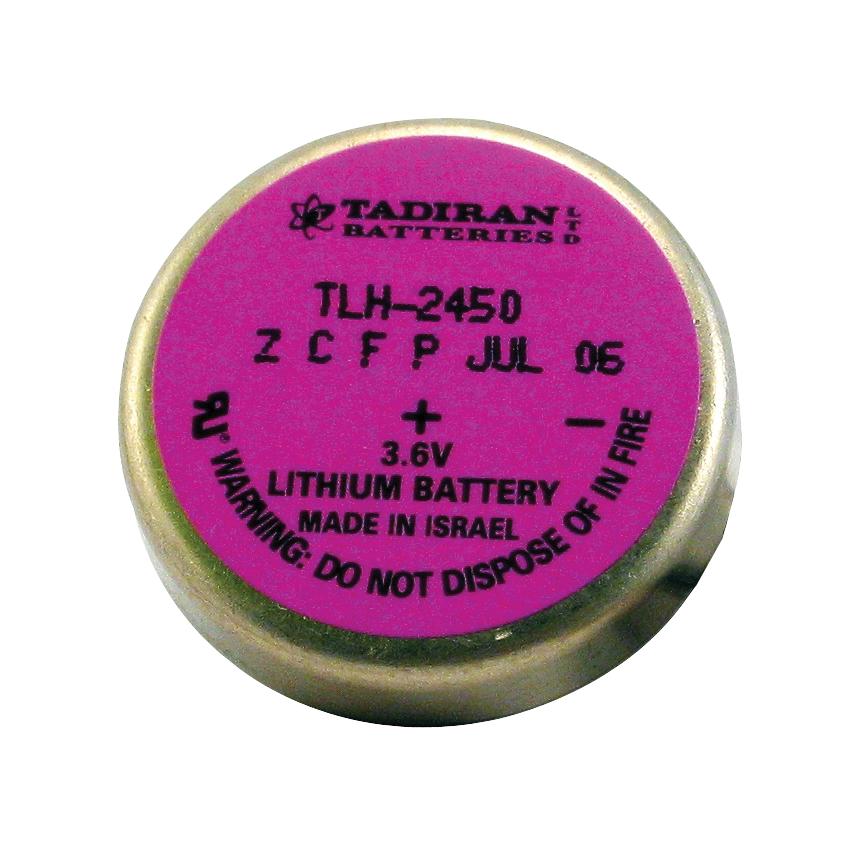

TADIRAN BATTERIES TLH2450P Lithium Thionyl Chloride Battery
The TLH-2450 is a high-energy lithium-thionyl chloride primary cell with a nominal voltage of 3.6 V, designed for long-term use in high-temperature environments up to 125°C. It features fast voltage recovery after long storage, low self-discharge, and hermetic glass-to-metal sealing for reliability. Suitable for wafer construction, tire pressure monitoring systems, and industrial utilities. Weighing only 8.8 grams with a volume of 2.60 cc, this battery offers a maximum pulse current of 10 mA and a capacity of 0.55 Ah, making it ideal for demanding electronic applications requiring stable power over extended periods.
TADIRAN BATTERIES TLH2450P Lithium Thionyl Chloride Battery Specifications:
- Nominal Capacity: 0.55 Ah at 0.5 mA to 2V
- Rated Voltage: 3.6 V
- Maximum Continuous Current: 5 mA
- Maximum Pulse Current: 10 mA
- Weight: 8.8 g
- Volume: 2.60 cc
- Operating Temperature Range: -55°C to +125°C
- Maximum Duration at +150°C: 3 hours
- UL Component Recognition: MH 12193
- Lithium Metal Content: approximately 0.2 g
- Cell Type: Lithium-thionyl chloride
- Construction: Hermetic glass-to-metal-sealed
- Electrolyte: Non-flammable
- Pins: Nickel plated
- Storage Conditions: Store in a dry, cool place below 30% RH
- Application: Tire pressure monitoring, industrial utilities, remote sensors
Buy the Tadiran Series TLH-2450 Lithium Battery: TLH2450P
Purchase the Tadiran TLH-2450 lithium-thionyl chloride battery online today and benefit from its high energy density, fast voltage recovery, and exceptional stability. Perfect for demanding applications like tire pressure monitoring systems, industrial utilities, and long-term remote sensors. With a nominal voltage of 3.6 V, low self-discharge rate, and hermetic glass sealing, this compact 8.8-gram cell provides reliable power up to 125°C. Get fast shipping and secure checkout for your high-temperature power needs.
Order your Tadiran Series TLH-2450 battery today and ensure reliable, high-temperature performance for your critical electronic applications.
