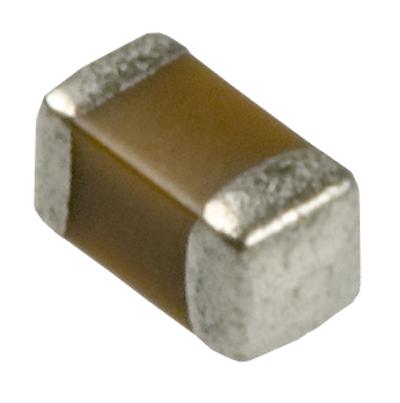

Taiyo Yuden GMK107BJ105KAT Multilayer Ceramic Capacitor
The Taiyo Yuden GMK107BJ105KA-T is a high dielectric multilayer ceramic capacitor designed for use in various electronic equipment. With a capacitance of 1uF, a voltage rating of 35V, and an X5R temperature characteristic, this capacitor offers reliable performance across a wide range of operating conditions. It is commonly used in AV equipment, OA equipment, and other general electronic applications. Always consult the full datasheet for detailed specifications and application guidelines.
Taiyo Yuden GMK107BJ105KAT Multilayer Ceramic Capacitor Specifications:
- Capacitance: 1 uF ± 10 %
- Case Size (EIA/JIS): 0603/1608
- Rated Voltage: 35 V
- tanδ (max): 5 %
- Temperature Characteristic (EIA): X5R
- Operating Temp. Range (EIA): -55 to +85 ℃
- High Temperature Loading: 150 %
- Insulation Resistance (min): 500 MΩ·μF
- RoHS Compliance: Yes
- REACH Compliance: Yes
- Halogen Free: Yes
- Soldering: Reflow
- Dimension L: 1.6 ±0.10 mm
- Dimension W: 0.8 ±0.10 mm
- Dimension T: 0.8 ±0.10 mm
- Dimension e: 0.35 ±0.25 mm
Buy the GMK107BJ105KA-T TAIYO YUDEN Multilayer Ceramic Capacitor | myMectronic
Purchase the TAIYO YUDEN GMK107BJ105KA-T securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Taiyo Yuden GMK107BJ105KAT?
You can click on the BUY or RFQ button to purchase GMK107BJ105KAT from an authorized Taiyo Yuden distributor.
How do I troubleshoot issues or seek technical support for part GMK107BJ105KAT?
You can download the GMK107BJ105KAT datasheet or visit the Taiyo Yuden website for support.
Who is the manufacturer of GMK107BJ105KAT?
Taiyo Yuden
