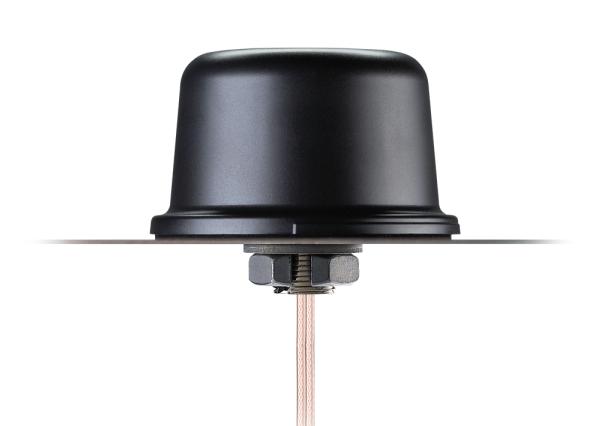

TAOGLAS MA841ABI002 4G LTE MIMO Antenna

The Colosseum MA841 antenna is a low-profile, durable external MIMO antenna designed for worldwide 4G LTE applications, including 3G and 2G bands. With a height of only 30mm, it offers high gain, excellent isolation, and weatherproof IP67 protection, making it ideal for telematics, asset tracking, emergency services, and digital signage. The antenna features a 94.3 mm diameter, 57.4 mm height, 1m RG-316 cable with SMA(M) connectors, and customizable cables and connectors, supporting reliable high-speed data uplink and downlink across multiple frequency bands.

TAOGLAS MA841ABI002 4G LTE MIMO Antenna Specifications:

  • Frequency bands: 698~803 MHz, 824~894 MHz, 880~960 MHz, 1710~1880 MHz, 1850~1990 MHz, 1920~2170 MHz, 2490~2690 MHz
  • Peak Gain MIMO 1: 2.09 dBi, MIMO 2: 3.56 dBi
  • Average Gain MIMO 1: 3.83 to -2.99 dB, MIMO 2: -3.03 to 3.65 dB
  • Efficiency: MIMO 1: 30.76% to 60.91%, MIMO 2: 35.37% to 51.01%
  • Impedance: 50Ω
  • Polarization: Linear
  • VSWR: <3.5
  • Dimensions: Diameter: 94.3mm, Height: 57.4mm
  • Weight: 250g
  • Casing Material: ASA
  • Base and Thread: Zinc Alloy
  • Cable: 1m RG-316
  • Connector: SMA(M)
  • Recommended Mounting Torque: 29.4 N·m, Max Torque: 39.2 N·m
  • Operating Temperature: -40°C to +90°C
  • Humidity: Non-condensing 65°C, 95% RH
  • Certifications: IP67 waterproof, RoHS, Reach, ISO 9001:2015

Buy the Taoglas MA841 – Reliable 4G LTE MIMO Antenna for Industrial Applications

Get the Taoglas MA841 antenna online today and enhance your telematics, asset monitoring, or emergency communication systems. This rugged, low-profile, IP67 waterproof antenna offers high gain, excellent signal isolation, and durability, ensuring superior coverage and performance across multiple worldwide LTE bands. Its easy mounting, customizable cables, and reliable connectivity make it ideal for industrial applications like vehicle tracking, digital signage, and remote monitoring setups. Order now and ensure your communication solutions are efficient, resilient, and ready for demanding conditions.

Buy Taoglas MA841 now and experience unmatched reliability and high-performance 4G LTE MIMO connectivity for demanding industrial environments.

Frequently Asked Questions

Where can I buy TAOGLAS MA841ABI002?

You can click on the BUY or RFQ button to purchase MA841ABI002 from an authorized TAOGLAS distributor.

How do I troubleshoot issues or seek technical support for part MA841ABI002?

You can download the MA841ABI002 datasheet or visit the TAOGLAS website for support.

Who is the manufacturer of MA841ABI002?

TAOGLAS
