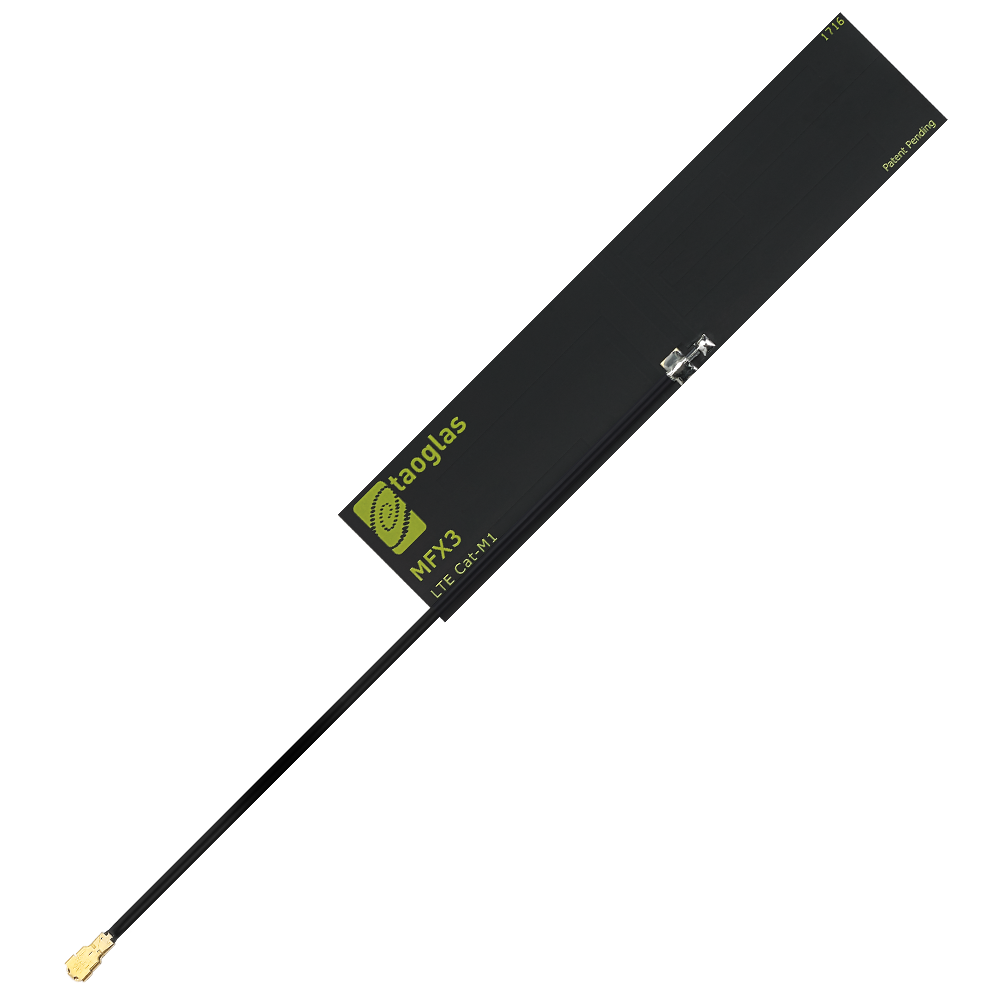

TAOGLAS MFX3070150C NB-loT Antenna
The ultra-wideband flexible antenna by Taoglas is designed for NB-loT and CAT M1 applications, covering 698-3000 MHz. It features high efficiency (>45%) across all bands, a peak gain of 5dBi, and dimensions of 96x21x0.2 mm, making it suitable for IoT, smart city, and M2M devices. Crafted from flexible polymer, it's ground plane independent, with a 150mm cable, IPEX MHFHT connector, and ROHS & REACH compliance. Easy to install via peel-and-stick on plastic or glass surfaces, optimized for reliable cellular and GPS connectivity.
TAOGLAS MFX3070150C NB-loT Antenna Specifications:
- Dimensions: 96*21*0.2 mm
- Frequency Range: 698-3000 MHz
- Peak Gain: 5 dBi
- Efficiency: >45% on all bands
- Cable Length: 150 mm
- Connector: IPEX MHFHT (U.FL compatible)
- Material: Flexible Polymer
- Impedance: 50 Ohms
- Max Input Power: 5 Watts
- Polarization: Linear
- Operation Temperature: ~40°C to 85°C
- Storage Temperature: -40°C to 85°C
- RoHS & Reach Compliant
Buy the Buy Taoglas NB-loT CAT M1 Flex Antenna Part Number MFX3070150C Online
Enhance your IoT devices with Taoglas NB-loT CAT M1 Flex Antenna offering wide coverage from 698 to 3000 MHz. Its durable, flexible design and ground plane independence simplify installation on plastic or glass surfaces. Designed for high efficiency, it provides excellent signal strength with a peak gain of 5dBi and over 45% efficiency across all bands. Compact and easy to install via peel-and-stick method, it’s perfect for smart city, automotive, and M2M applications needing reliable cellular and GPS connectivity on a budget.
Buy Taoglas MFX3.07.0150C now and experience reliable performance with ultra-wideband coverage for your IoT and cellular projects.
Frequently Asked Questions
Where can I buy TAOGLAS MFX3070150C?
You can click on the BUY or RFQ button to purchase MFX3070150C from an authorized TAOGLAS distributor.
How do I troubleshoot issues or seek technical support for part MFX3070150C?
You can download the MFX3070150C datasheet or visit the TAOGLAS website for support.
Who is the manufacturer of MFX3070150C?
TAOGLAS
