TAOGLAS WSA2458A101151 Wi-Fi Antenna

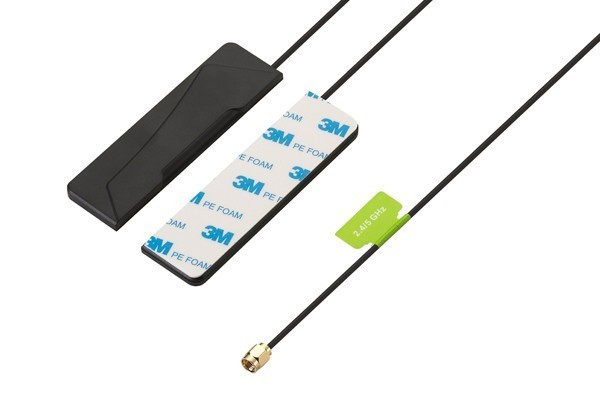

The Phoenix WSA.2458 Dual Band Wi-Fi I-Bar antenna is a low profile, omnidirectional antenna designed for automotive, telematics, and M2M applications. Operating on 2.4/5.8GHz bands, it features a slim 7.7mm height, 105*30mm size, and comes with a 1-meter RG-174 cable with RP-SMA(M) connector. Ideal for covert installations, it offers excellent radiation pattern and industry performance, tested in automotive-approved facilities. Its UV-resistant, adhesive-mount design allows easy installation on glass or plastic surfaces, with customizable cable options.
TAOGLAS WSA2458A101151 Wi-Fi Antenna Specifications:
- Frequency: 2400~2500MHz and 4900~5850MHz
- Impedance: 50Ω
- Return Loss: < -10 dB
- Gain: -1.66 to -14.23 dBi depending on distance and surface
- Efficiency: 14.32% at 5m in free space for 2.4GHz, 4.45% at 5m for 5.8GHz
- Peak Gain: 1.48 dBi on glass at 2m for 2.4GHz
- Average Gain: -4.13 to -8.44 dBi depending on setup
- Antenna Size: 105 * 30 * 7.7 mm
- Cable: 1 meter RG-174, customizable
- Connector: RP-SMA(M)
- Material: PC+ABS, UV resistant
- Mounting: Adhesive on glass or plastic, not metal
- Compliance: RoHS
- Operating temperature: not specified but suitable for automotive/industrial environments
Buy the Taoglas WSA.2458 Dual Band Wi-Fi I-Bar – Reliable Wi-Fi Antenna for Industrial Applications
Enhance your industrial or automotive Wi-Fi connectivity with the Taoglas WSA.2458 Dual Band I-Bar antenna. Featuring a low profile, omnidirectional radiation pattern, and high efficiency on 2.4/5.8GHz bands, this antenna is designed for covert and permanent installations on glass or plastic surfaces. Its 1-meter RG-174 cable with RP-SMA(M) connector is fully customizable, ensuring compatibility with various devices. UV resistant and tested in automotive-approved facilities, it guarantees robust performance even in harsh conditions. Choose this proven solution for reliable wireless communication in demanding applications.
Buy Taoglas WSA.2458 now and experience unmatched reliability, excellent omnidirectional performance, and easy adhesive installation in demanding environments.
