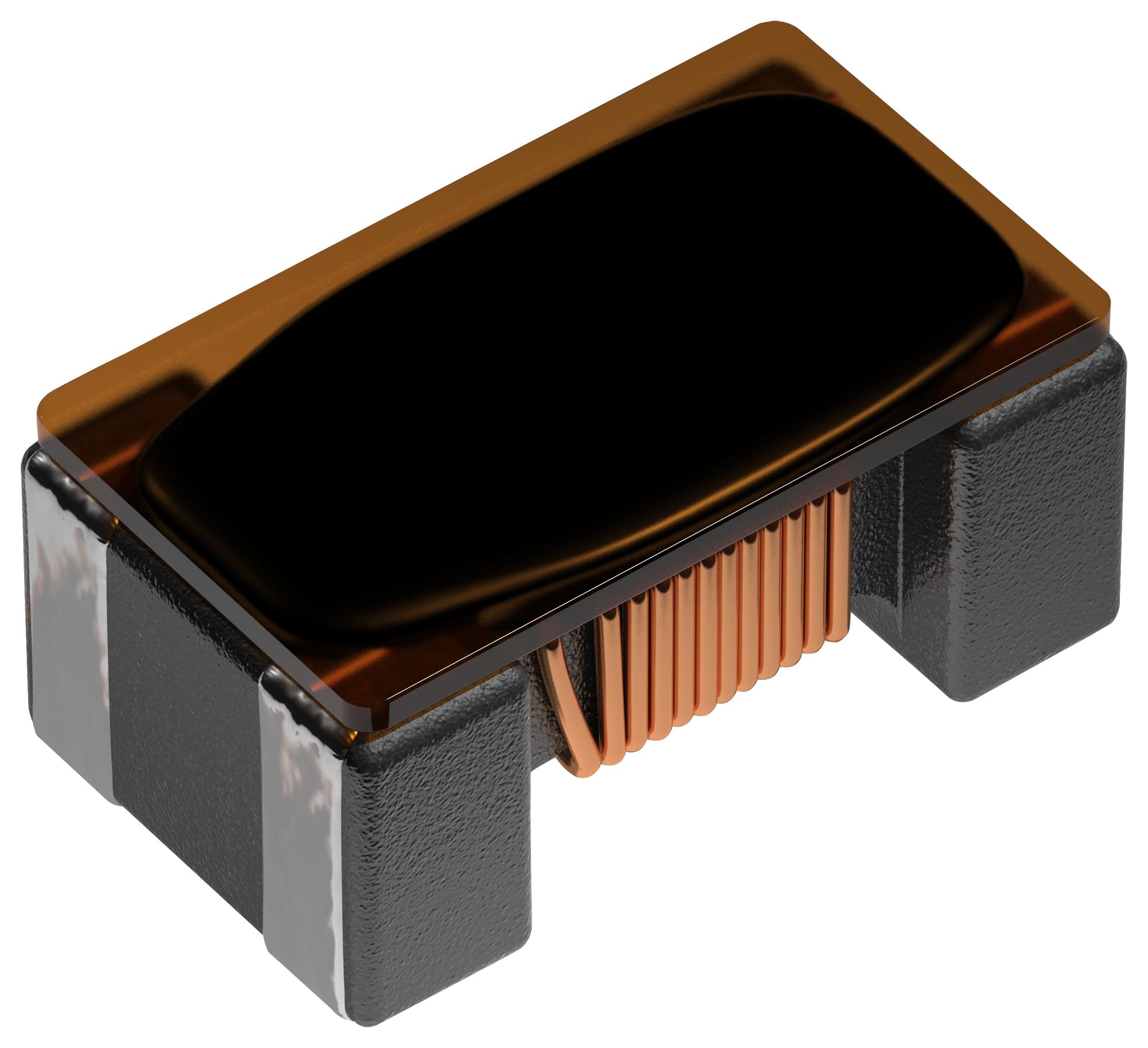

TDK Corporation ACM20122022PT002 Common Mode Filter
The ACM2012 series comprises compact common mode filters designed for high-speed differential signal lines, effectively suppressing noise without impacting signal integrity. These wound-type chip filters operate over a temperature range of -40°C to +85°C, providing impedance of up to 1500 Ω at 100 MHz with low DC resistance, making them suitable for USB, Ethernet, and LVDS applications. Their small form factor, packaged in reels of 2000 pieces, includes recommended land patterns and a robust reflow profile for precise mounting, ensuring EMI reduction and signal clarity in electronic devices.
TDK Corporation ACM20122022PT002 Common Mode Filter Specifications:
- Impedance at 100MHz: 1500 Ω for common mode noise suppression
- DC Resistance: 25 mΩ to 0.5 Ω depending on model
- Rated Voltage: 50 V
- Rated Current: 0.15 A to 0.4 A
- Operating Temperature: -40°C to +85°C
- Package: Reel of 2000 pcs, dimensions in mm: 20.0 x 20.0 x 4.00
- Soldering: Reflow profile max temperature 245°C, peak 230°C
- Dimensions (LxWxH): 20.0 mm x 20.0 mm x 4.00 mm
- Suitable for applications in USB, Ethernet, LVDS, and Panel Link lines
- Impedance vs. frequency measured up to 1000 MHz, ensuring EMI reduction
Buy the Buy EMC Components TDK Common Mode Filters Part Number ACM2012 Online
Purchase the TDK ACM2012 series common mode filters online today to enhance electromagnetic compatibility in your electronic equipment. These filters are compact and reliable for high-speed differential signals such as USB, Ethernet, and LVDS lines. Designed to operate from -40°C to +85°C, they provide impedance up to 1500 Ω at 100 MHz for superior noise suppression. Suitable for reflow soldering with recommended profiles, their robust construction ensures long-lasting performance and EMI reduction, making them ideal for various high-speed communication applications across consumer and industrial electronics.
Get TDK ACM2012 series common mode filters today—designed for high-speed data lines, offering excellent EMC suppression and reliable performance.
