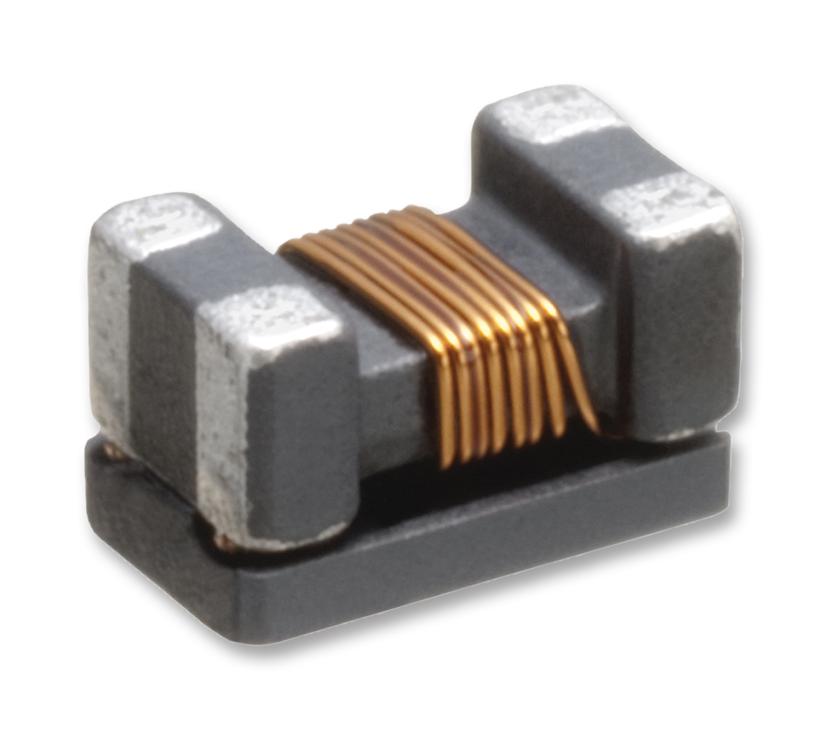

TDK Corporation ACM20123612PT001 Automotive Common Mode Filter
The ACM2012 series are reliable common mode filters designed for automotive signal lines, capable of suppressing EMI waveform interference in multimedia interfaces such as MOST and USB2.0. Operating within a temperature range of -40 to +105°C, these filters feature four impedance options for versatile usage, ensuring high performance in harsh environments. They are housed in compact, reel-based packaging suitable for automated assembly, and meet RoHS compliance standards. Ideal for automotive communications, they prevent signal noise without distorting waveforms, enhancing overall vehicle electronics reliability.
TDK Corporation ACM20123612PT001 Automotive Common Mode Filter Specifications:
- Temperature Range: -40°C to +105°C
- Impedance Values: 900Ω, 120Ω, 200Ω, 360Ω
- Rated Voltage: 50V
- DC Resistance: 0.19Ω to 0.25Ω depending on impedance
- Common Mode Impedance at 100mHz: 90Ω to 200Ω
- Dimensions: 2.0 x 1.2 mm
- Package: 180 reel, 2000 pieces
- Housing Material: Not specified
- RoHS Compliant, Halogen-Free
- Soldering Profile: Preheat at 150°C up to 120s, peak temperature 245°C
- Storage Conditions: 5-40°C, 10-75% RH, less than 6 months shelf life
- Application: Automotive multimedia interfaces, EMI suppression
Buy the EMC Components Series ACM2012 Common Mode Filter: ACM20123612PT001
Enhance your vehicle's electronic reliability with our high-quality automotive common mode filters. Designed for EMI suppression in multimedia signals, they operate reliably from -40°C to +105°C. Featuring four impedance options, RoHS compliance, and compact reel packaging, these filters are ideal for automotive applications. Ensure noise-free signals in your car multimedia systems like USB2.0 and MOST interfaces. Purchase online today to benefit from quick delivery and proven performance, safeguarding your automotive electronics from interference and ensuring compliance with industry standards.
Buy EMC Components Series ACM2012 common mode filter now and experience unmatched EMI suppression performance in automotive signal lines.
Frequently Asked Questions
Where can I buy TDK Corporation ACM20123612PT001?
You can click on the BUY or RFQ button to purchase ACM20123612PT001 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACM20123612PT001?
You can download the ACM20123612PT001 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACM20123612PT001?
TDK Corporation
