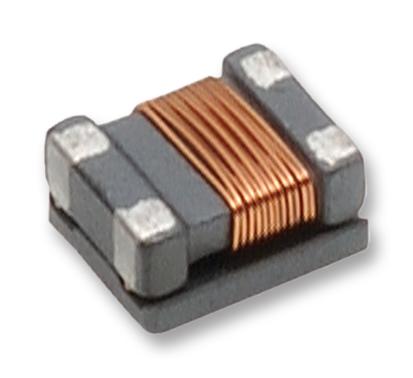

TDK Corporation ACM25203012PT002 Common Mode Filter
The ACM2520 series are compact common mode filters designed for high-speed differential signal lines, offering excellent EMC suppression with impedance over 1000 ohms at 100MHz. Suitable for USB, Ethernet, LVDS, and Panel Link lines, these downsized wound chip filters maintain required characteristics without affecting high-speed signals. Available in 2-line and 3-line types, they feature optimized impedance, DC resistance, and insulation resistance, ensuring reliable noise filtering in various electronic applications while complying with RoHS directives and offering a recommended reflow profile for safe mounting.
TDK Corporation ACM25203012PT002 Common Mode Filter Specifications:
- Series: ACM2520
- Dimensions: 2.5x2.0x1.2 mm
- Impedance at 100MHz: 225-750 ohms (varies with part number)
- DC Resistance: 0.35 to 0.45 ohms
- Rated Voltage: 20V
- Rated Current: 0.4 to 0.3 A
- Temperature Range: -40°C to +85°C (storage and operating)
- Package Quantity: 2000 pieces per reel
- Package Style: 180mm reel
- Material: Wound chip construction
- Compliance: RoHS compliant
- Reflow Profile: Preheating to 150°C, peak at 245°C, controlled cooling
- Application: Noise filtering for high-speed differential and general signals, USB, Ethernet, LVDS, high-frequency lines
Buy the TDK Series ACM2520 Common Mode Filter: ACM25203012PT002
Enhance your electronic device with the reliable TDK ACM2520 series common mode filters, expertly designed for high-speed differential and general signal lines. These compact, wound chip filters deliver excellent EMC suppression, maintaining signal integrity across USB, Ethernet, LVDS, and Panel Link interfaces. Featuring low impedance at 100MHz and compliance with RoHS standards, they are perfect for professional soldering via recommended reflow profiles. Secure your supply of these high-performance filters online today and optimize your circuit's noise filtering capacity effectively.
Order your TDK Series ACM2520 common mode filter today and ensure superior noise suppression for high-speed digital circuits and EMI reduction.
