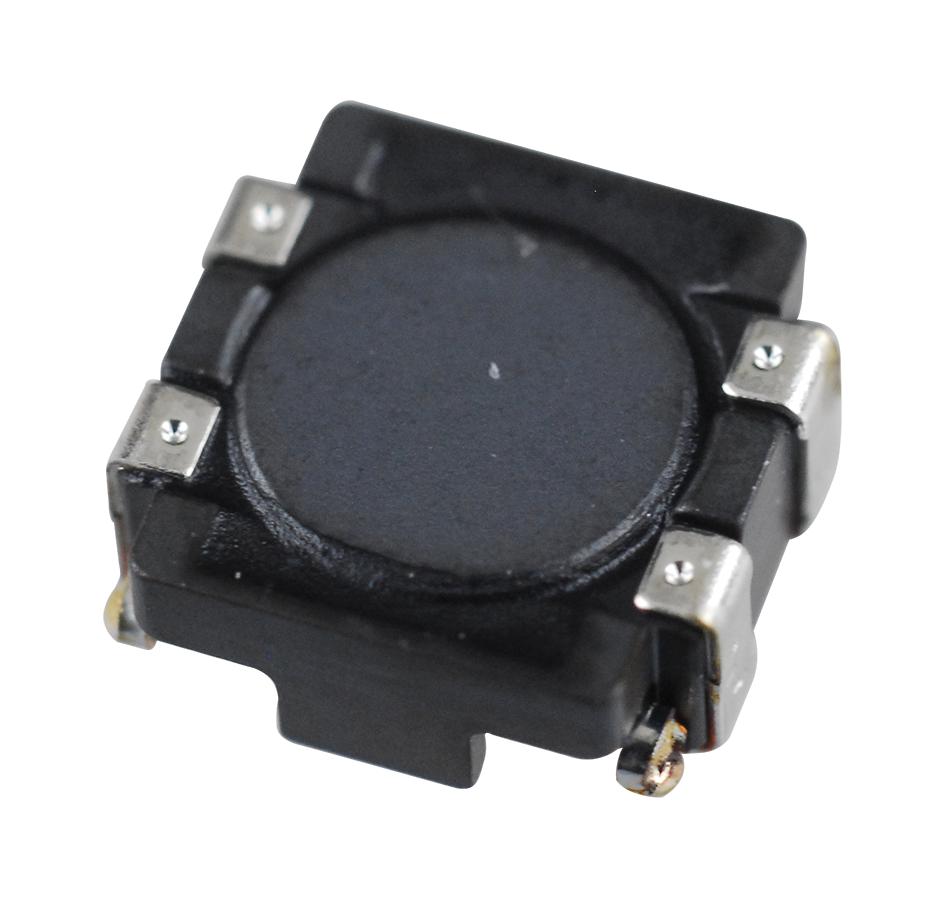

TDK Corporation ACM45209012PT000 Power Line Noise Filter
This high-performance common mode filter is designed for power line noise suppression in electronic devices. Compact and efficient, it features excellent impedance characteristics for large current applications, making it suitable for power line noise countermeasures in electronic equipment such as DVCs, DVD cameras, and computers. The filter's robust construction ensures reliability across operating temperature ranges. Its RoHS compliance and compatibility with lead-free soldering enhance its suitability for modern electronic assembly, providing effective noise filtering while maintaining a small footprint for space-constrained designs.
TDK Corporation ACM45209012PT000 Power Line Noise Filter Specifications:
- Series: ACM
- Type: 4520
- Dimensions: 4.7 x 4.5 x 2.0 mm
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Rated Voltage: 250VAC
- Rated Current: 0.25A
- Impedance (Common Mode): 500Ω to 650Ω at 100 MHz
- DC Resistance: 0.05 to 0.06Ω
- Insulation Resistance: 50 MΩ or more at 250V DC
- Reel Size: 330mm reel for high-volume mounting
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Suitable for Surface Mount Technology (SMT)
- Designed for power line noise suppression in electronic equipment
Buy the EMC Components Series ACM Power Line Filter: ACM4520
Purchase the EMC Components ACM4520 power line noise filter online now to ensure high-quality noise suppression for your electronic devices. This compact and RoHS-compliant filter offers excellent impedance characteristics, making it ideal for large current applications in consumer electronics, computing, and communication equipment. Its small size and surface-mount design facilitate easy integration into your PCB layout. Ensure your device meets noise standards efficiently and reliably with this high-performance power line filter, available for quick ordering from authorized distributors.
Get EMC Components ACM4520 power line filter today—built for reliable noise suppression in high-current electronic applications.
Frequently Asked Questions
Where can I buy TDK Corporation ACM45209012PT000?
You can click on the BUY or RFQ button to purchase ACM45209012PT000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACM45209012PT000?
You can download the ACM45209012PT000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACM45209012PT000?
TDK Corporation
