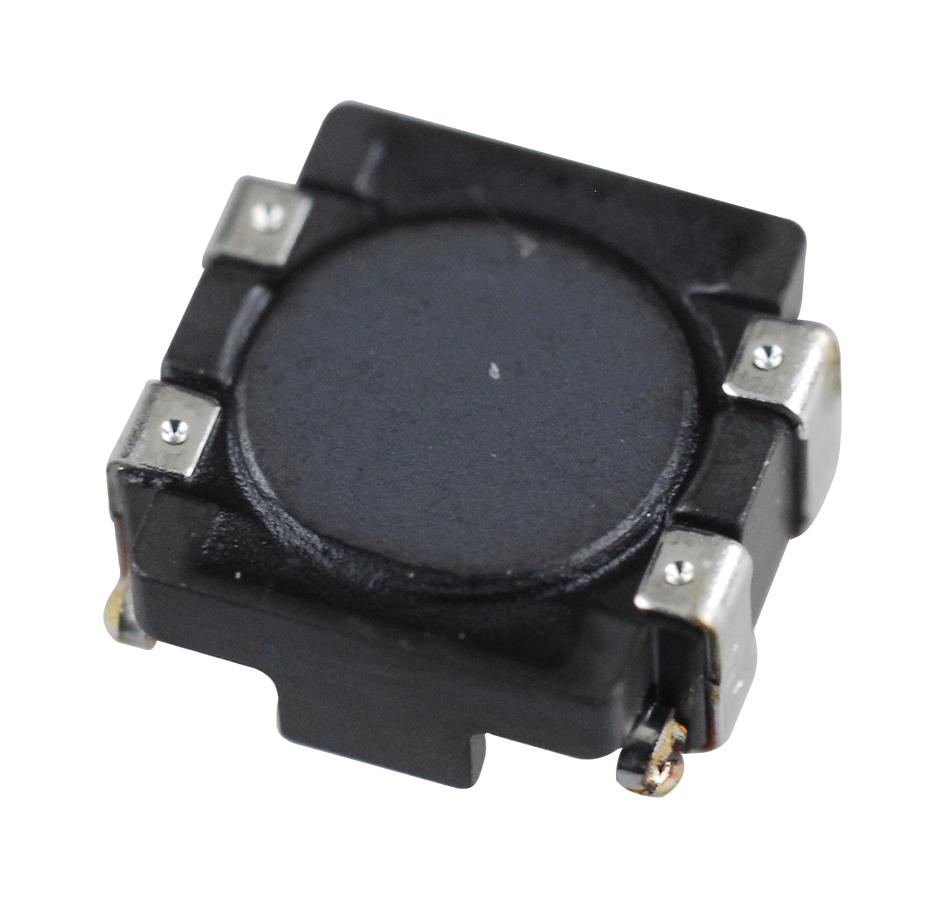

TDK Corporation ACM4520V2312PT00 Automotive Power Line Filter
The ACM4520V series is a compact, high-impedance common mode filter designed for automotive power line noise suppression in infotainment systems. It features a low-profile surface-mount design, supporting currents up to 1.5 A at 125°C. Constructed with a dedicated ferrite core, it effectively reduces common mode noise across DC power lines, ensuring electrical stability and EMI compliance. Suitable for automotive multimedia, electrical devices, and industrial applications, it meets RoHS standards, is halogen-free, and supports lead-free soldering. The series offers reliable performance in harsh environments with impedance stabilization at 100MHz.
TDK Corporation ACM4520V2312PT00 Automotive Power Line Filter Specifications:
- Series name: 4520V
- Size: 4.7x4.5x2.0 mm
- Number of lines: 2P (2 lines)
- Impedance at 100MHz: 180Ω to 1000Ω typical
- Rated current: 1.5 A at 125°C
- Operating temperature: -40°C to +125°C
- Storage temperature: -40°C to +125°C
- Package quantity: 800 pieces/reel
- Material: Ferrite core, halogen-free, RoHS compliant
- Mounting: Surface mount (SMT)
- Supports lead-free soldering
- Reel diameter: 180mm
- Insulation resistance: >50 MΩ at 50 V DC
- Rated voltage: 50 V
- Self-heating considerations: permissible within current ratings in specified temperature range
- Designed for automotive infotainment and electronic noise filtering applications
Buy the TDK ACM4520V – Reliable Common Mode Filter for Industrial Applications
Enhance your electronic devices with the TDK ACM4520V series common mode filter, specially designed for automotive infotainment and industrial power lines. Its compact size, high impedance, and support for lead-free soldering provide excellent noise suppression and reliability in demanding environments. Meets RoHS standards and halogen-free requirements, ensuring safety and compliance. Perfect for reducing EMI in sensitive electronic systems, this filter ensures stable operation, durability, and efficient performance. Order online now to secure this reliable component for your industrial or automotive projects.
Order your TDK Series ACM4520V automotive power line filter today and give your electronic systems the dependable EMI noise suppression they deserve.
Frequently Asked Questions
Where can I buy TDK Corporation ACM4520V2312PT00?
You can click on the BUY or RFQ button to purchase ACM4520V2312PT00 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACM4520V2312PT00?
You can download the ACM4520V2312PT00 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACM4520V2312PT00?
TDK Corporation
