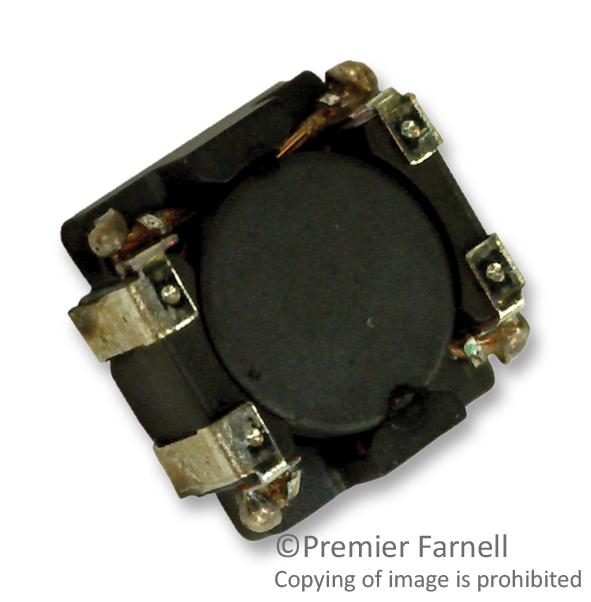

TDK Corporation ACM4520V9012PT00 Power Line Noise Filter
The ACM4520 is a compact, high-current chip common mode filter designed for power line noise suppression in electronic equipment such as DVD cameras, DSCs, and other portable devices. It features low profile and small size, making it ideal for surface mounting and high-density applications. Its excellent common mode impedance ensures effective noise filtering. The device operates between -40°C to +85°C and comes in a 330mm reel with a package weight of 0.15g, complying with RoHS directives for environmentally friendly manufacturing.
TDK Corporation ACM4520V9012PT00 Power Line Noise Filter Specifications:
- Operating temperature: -40°C to +85°C
- Package: 330mm reel, 2500 pieces/reel
- Weight: 0.15g
- Common mode impedance: 4991A typical 50Ω at 100MHz
- Rated current: 3.0A
- Rated voltage: 230V
- DC resistance: 0.05Ω at 60°C
- Insulation resistance: 50 MΩ at 85°C
- Frequency range tested: up to 1000 MHz
- RoHS compliant: Yes, halogen-free
Buy the Buy EMC Components ACM4520 Part Number ACM4520V9012PT00 Online
Secure your electronic equipment’s performance with the ACM4520 power line noise filter. Designed for high-current applications, it offers excellent noise suppression and compact surface-mount design. This RoHS-compliant filter operates from -40°C to +85°C, ensuring durability in diverse environments. It features low DC resistance and high insulation resistance for reliable operation. Ideal for portable devices, DVD cameras, DSCs, and power supplies, this filter provides the essential filtering performance required for modern electronic applications. Order online today for quick delivery and seamless integration.
Buy EMC Components ACM4520 now and experience unmatched noise suppression with high reliability, making your electronic devices more robust and interference-free.
Frequently Asked Questions
Where can I buy TDK Corporation ACM4520V9012PT00?
You can click on the BUY or RFQ button to purchase ACM4520V9012PT00 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACM4520V9012PT00?
You can download the ACM4520V9012PT00 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACM4520V9012PT00?
TDK Corporation
