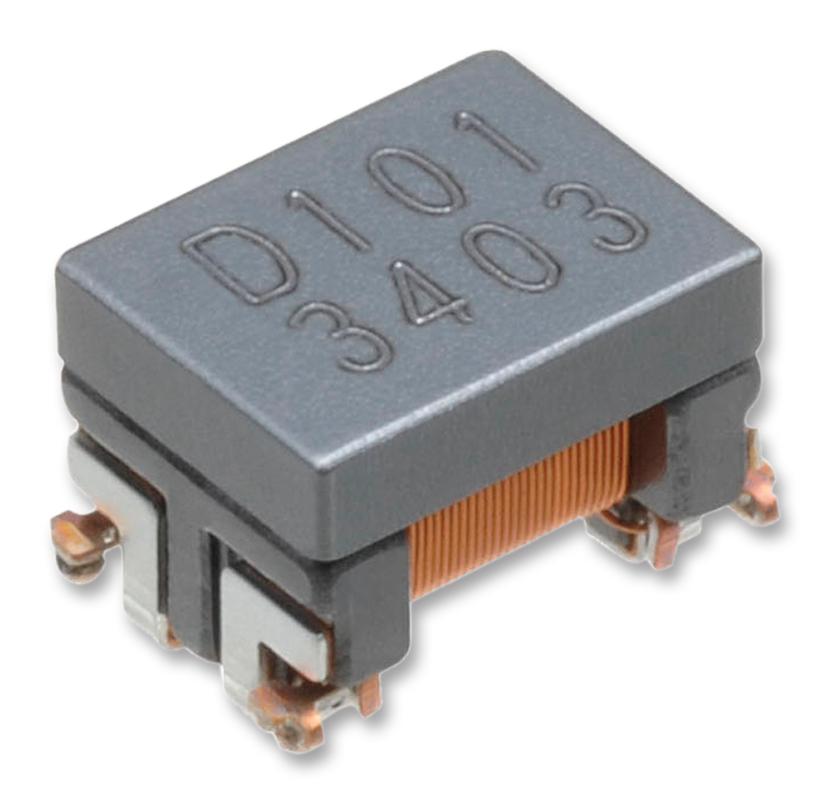

TDK Corporation ACT12105102PTL00 Automotive Common Mode Filter
The ACT1210 series are compact common mode filters designed for automotive signal lines, including CAN-BUS and FlexRay systems. These filters feature a 3225 size, operate within a temperature range of -55°C to +150°C, and provide high immunity against electromagnetic interference. Suitable for critical automotive electronic systems, they offer low DC resistance and high common mode impedance, ensuring reliable signal integrity. Their robust construction and RoHS compliance make them ideal for harsh environments requiring durable, high-performance filtering components.
TDK Corporation ACT12105102PTL00 Automotive Common Mode Filter Specifications:
- Size: 3225 (3.2 x 2.5 mm)
- Operating Temperature Range: -55°C to +150°C
- Number of Lines: 2 lines
- Reel Packaging Quantity: 6,000 units
- Weight per unit: 0.07 g
- Material: RoHS compliant
- Impedance at 100MHz: 300-500 uH (varies by model)
- DC Resistance: 0.05-0.13 Ω
- Common Mode Impedance: up to 5100 Ω
- Soldering: Compatible with lead-free solders
- Compliance: AEC-Q200
- Reflow Temperature Profile: peak at 245°C for 5s
- Application: Automotive signal line filtering for CAN-BUS, FlexRay
- Magnetic Field Resistance: Designed to prevent malfunction from magnetic interference
Buy the EMC Components ACT1210 – Reliable Automotive Common Mode Filter for Industrial Applications
Enhance your automotive signal line protection with the high-performance ACT1210 common mode filters. Compact and reliable, these filters operate across a wide temperature range, ensuring stable operation in demanding environments. Their low resistance and high impedance specifications make them suitable for CAN-BUS and FlexRay systems, reducing electromagnetic interference effectively. These RoHS-compliant filters are easy to integrate, suitable for lead-free soldering, and ideal for automotive manufacturers and industrial electronics needing robust filtering solutions that meet strict industry standards.
Buy EMC Components ACT1210 common mode filters now and ensure high durability, low resistance, and excellent signal integrity for automotive and industrial systems.
Frequently Asked Questions
Where can I buy TDK Corporation ACT12105102PTL00?
You can click on the BUY or RFQ button to purchase ACT12105102PTL00 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACT12105102PTL00?
You can download the ACT12105102PTL00 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACT12105102PTL00?
TDK Corporation
