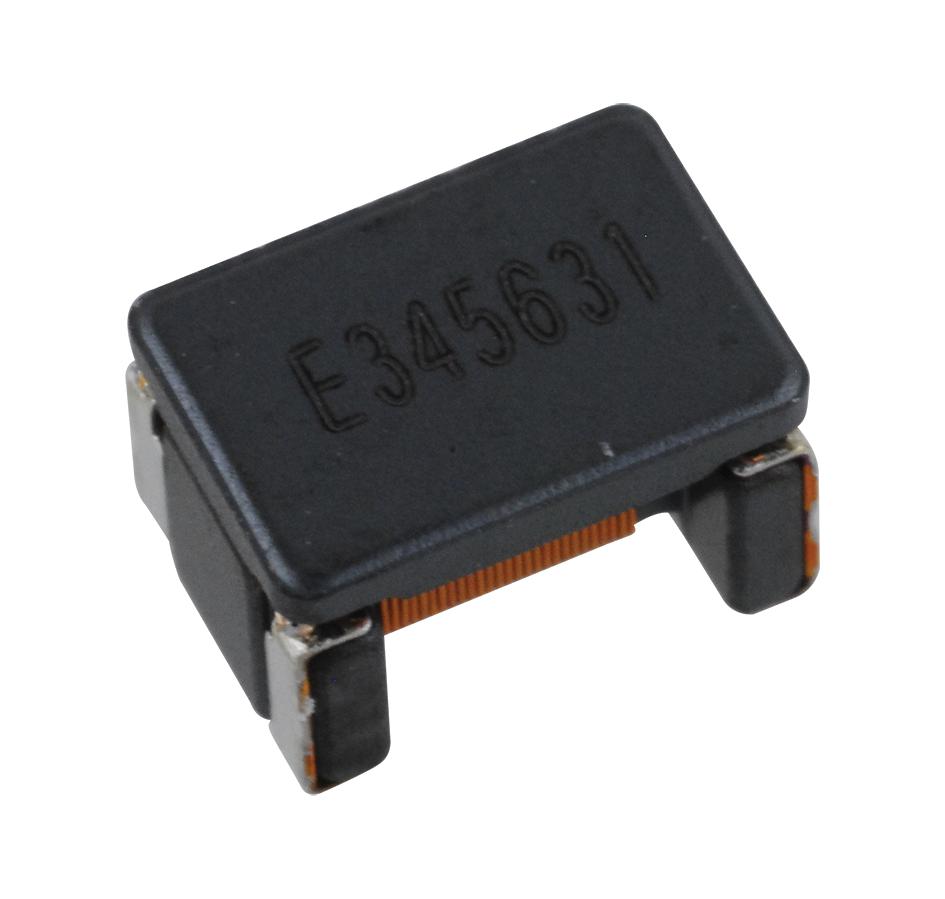

TDK Corporation ACT45B1102PTL003 Automotive Signal Line Filter
The product is a common mode filter series designed for automobile signal lines, suitable for CAN-BUS, FlexRay, and Ethernet systems. It features high temperature tolerance up to 150°C for vehicle applications, with low DC resistance achieved through unique technology, maintaining high inductance of 100uH or 200uH depending on the model. The filters are compact, with precise dimensions and mounting specifications, and are suitable for high-reliability automotive electronic environments. Ideal for vehicle communication and signal integrity, these filters meet stringent performance standards in harsh conditions.
TDK Corporation ACT45B1102PTL003 Automotive Signal Line Filter Specifications:
- Operating Temperature Range: -40°C to +150°C
- Storage Temperature Range: -40°C to +150°C
- Package Quantity: 2,500 pieces/reel
- Dimensions: Length 13.5 mm, Width 5.5 mm, Height 4.9 mm (varies by model)
- Inductance: 100uH for ACT45B, 200uH for ACT45L, maintained at high temperature
- DC Resistance: Low DC Resistance achieved via unique technology (e.g., DCR < 29 @ 125°C for ACT45R)
- Rated Voltage: 50 V (typical), Max 50 V
- Rated Current: Up to 2 A depending on model
- Package Style: Reel
- Soldering: Compatible with reflow process, preheating at 150°C, peak temp 245°C
- Compliance: RoHS Directive compliant
- Design: Compact, surface-mount with precise land pattern
- Application: Automotive signal line filtering, CAN-BUS, FlexRay, Ethernet systems
Buy the TDK Series Common Mode Filter: ACT45B1102PTL003
Order the TDK ACT45B1102PTL003 online today to ensure your vehicle's electronic systems perform reliably. These filters effectively reduce noise and interference in CAN-BUS, FlexRay, and Ethernet lines, maintaining signal integrity even under high-temperature conditions. With precise mounting specifications and low DC resistance, they meet strict automotive safety standards. Enhance your vehicle's electronic performance with these high-quality, RoHS-compliant filters. Purchase online now for quick delivery and technical support, ensuring seamless integration into your automotive applications.
Buy TDK ACT45B1102PTL003 now and experience high reliability with excellent noise suppression for automotive communication systems.
Frequently Asked Questions
Where can I buy TDK Corporation ACT45B1102PTL003?
You can click on the BUY or RFQ button to purchase ACT45B1102PTL003 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACT45B1102PTL003?
You can download the ACT45B1102PTL003 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACT45B1102PTL003?
TDK Corporation
