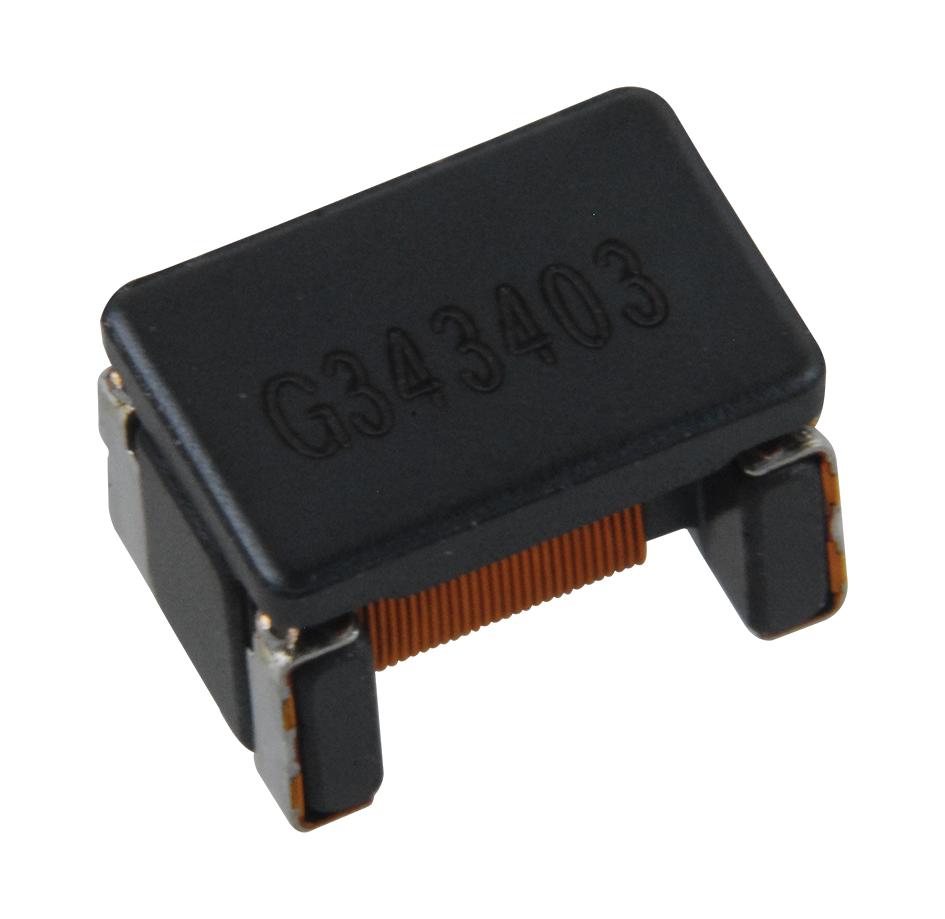

TDK Corporation ACT45B5102PTL003 Common Mode Filter
The ACT45B-510-2P-TL003 is a common mode inductor choke designed for automotive CAN system applications, effectively suppressing asymmetric interference while passing data signals up to approximately 10 MHz. It features an operating temperature range of -40°C to 150°C, is qualified to AEC-Q200 standards, and supports lead-free reflow soldering per JEDEC J-STD-020D. Utilizing a ferrite I core and enamel-coated copper wire, it is welded to terminals, making it ideal for automotive electronics. This component ensures high reliability and durability in harsh environments, making it suitable for power train and safety signal lines in vehicles.
TDK Corporation ACT45B5102PTL003 Common Mode Filter Specifications:
- Operating Temperature Range: -40°C to +150°C
- Impedance at 100 kHz: 300 to 2000 Ω
- Common Mode Impedance: 300 to 2000 Ω
- Inductance at 100 kHz: 0.05 to 0.20 μH
- Rated Current: 1 A to 2.8 A depending on model
- Insulation Resistance: 50 V operation
- Dimensions: Length 4.0 mm, Width 3.0 mm, Height 2.0 mm
- Construction: Ferrite core with enamel-coated copper wire
- Soldering Compatibility: Lead-free reflow, JEDEC J-STD-020D
- Compliance: AEC-Q200 automotive standard
- Package: Tape and reel, coil of 2,500 pcs
Buy the Buy EMC Components TDK ACT45B Part Number ACT45B5102PTL003 Online
Purchase the TDK ACT45B-510-2P-TL003 common mode filter online to ensure optimal noise suppression and reliability in automotive CAN systems. This high-temperature, AEC-Q200 compliant inductor uses ferrite core technology for effective interference reduction. Its construction with enamel-coated copper wire welds to the terminals for durability and precision. Suitable for lead-free reflow soldering, it is ideal for applications requiring stable performance over a temperature range of -40°C to +150°C. Delivered in tape and reel packaging, it supports large volume automotive manufacturing needs, ensuring high reliability and compliance with industry standards.
Get EMC Components TDK ACT45B product today—designed for automotive high-temperature environments and long-lasting reliability.
Frequently Asked Questions
Where can I buy TDK Corporation ACT45B5102PTL003?
You can click on the BUY or RFQ button to purchase ACT45B5102PTL003 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACT45B5102PTL003?
You can download the ACT45B5102PTL003 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACT45B5102PTL003?
TDK Corporation
