TDK Corporation ACT45L2012PTL000 Automotive Common Mode Filter
The ACT45L type common mode filter from EMC Components & TDK is designed for automotive signal lines, especially for infotainment systems such as Ethernet. It features a high inductance of 200uH, a high L-value achieved through unique technology, and operates within temperatures of -40 to +105°C. Compliant with AEC-Q200, its compact design ensures reliable noise suppression in vehicle communication circuits, preventing electromagnetic interference and ensuring signal integrity across automotive networks. Suitable for automotive Ethernet systems, this filter enhances high-frequency noise filtering for robust electronic communication in vehicles.
TDK Corporation ACT45L2012PTL000 Automotive Common Mode Filter Specifications:
- Inductance: 200uH ±60/-20pH
- Qmax: 100
- Rated current: 50mA
- Insulation resistance: 10MΩ min.
- Rated voltage: 50V
- Operating temperature range: -40 to +105°C
- Compliance: AEC-Q200
- Dimensions: Length 13.0 mm, Width 7.0 mm, Height 2.0 mm
- Package style: Reel, 2500 pcs/reel
- Soldering profile: Preheat 150°C, Peak 245°C
- Storage temperature: -40 to +105°C for up to 12 months
- Material: High-quality magnetic core and epoxy resin encapsulation
- Application: Automotive Ethernet, infotainment noise filtering
- Mounting: Surface-mount technology

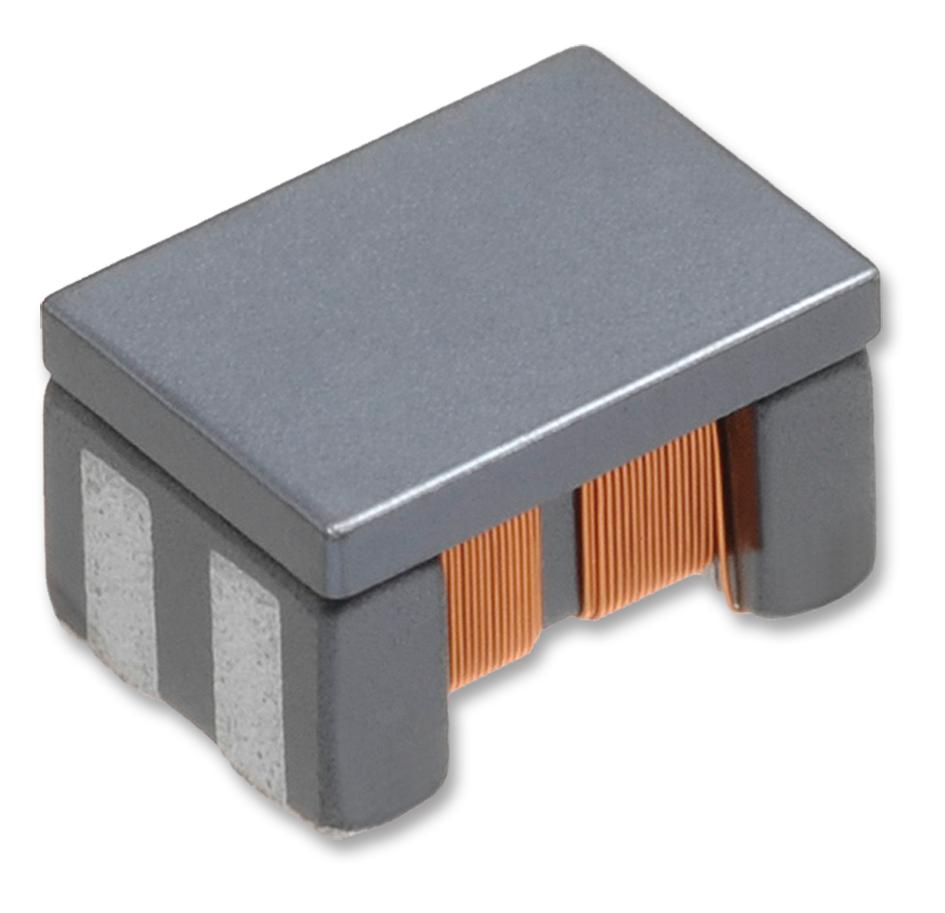

Buy the EMC Components TDK – Reliable Common Mode Filter for Automotive Ethernet ACT45L
Enhance your automotive communication systems with the reliable ACT45L common mode filter from EMC Components & TDK. Designed for high-frequency noise suppression in Ethernet and infotainment connections, it features a high inductance of 200uH and operates reliably across -40°C to +105°C. Its compact size and compliance with AEC-Q200 standards make it ideal for vehicle applications. Easily incorporate this surface-mount filter into your design to improve signal integrity, reduce electromagnetic interference, and ensure robust electronic performance in demanding automotive environments.
Get EMC Components TDK ACT45L today—built for precision, high-frequency noise filtering, and long-lasting durability in automotive communication systems.
Frequently Asked Questions
Where can I buy TDK Corporation ACT45L2012PTL000?
You can click on the BUY or RFQ button to purchase ACT45L2012PTL000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACT45L2012PTL000?
You can download the ACT45L2012PTL000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACT45L2012PTL000?
TDK Corporation
