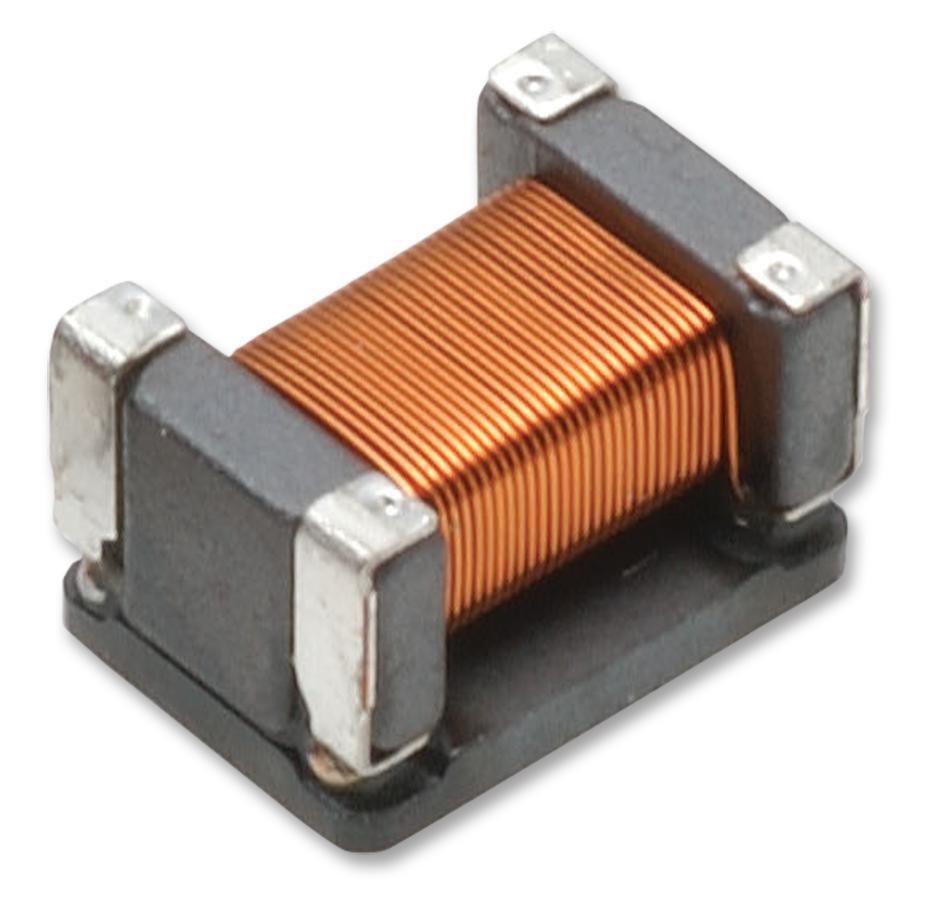

TDK Corporation ACT45R1012PTL001 Automotive Signal Filter
The ACT45R type is a high-temperature automotive common mode filter designed for signal lines in power train and safety systems. Operating within -40 to +150°C and compatible with AEC-Q200 standards, it features a high inductance of 100uH and low DCR of less than 20Ω@125°C. Suitable for FlexRay systems and automotive infotainment, it offers excellent common mode impedance at varying frequencies, ensuring signal integrity and noise reduction. Its compact dimensions, robust construction, and reliable performance make it ideal for demanding automotive environments.
TDK Corporation ACT45R1012PTL001 Automotive Signal Filter Specifications:
- Operating temperature: -40°C to +150°C
- Inductance: 100uH
- DCR: Less than 20Ω@125°C
- Common mode impedance at 10MHz: 2200Ω
- Common mode impedance at 100kHz: 5500Ω
- Rated insulation voltage: 10V
- Dimensions: 4.75mm x 3.60mm x 2.83mm
- Packaging: Reels of 2,500 pcs
- Compliance: AEC-Q200
- Frequency range: Up to 1MHz
- Application: Automotive signal line, FlexRay, Infotainment
- Material: Ferrite core with copper wire winding
- Temperature Rise: Suitable for high-temperature conditions
- Certification: UL and RoHS compliant
Buy the EMC Components Series ACT45R Automotive Signal Filter: ACT45R1012PTL001
Purchase the EMC Components Series ACT45R1012PTL001 online—engineered for automotive signal lines, providing high inductance, low resistance, and reliable noise filtering. With a temperature range from -40°C to +150°C and compliance with industry standards, this filter enhances vehicle safety and electronic system performance. Its compact, robust design allows easy integration into automotive PCB layouts, ensuring signal integrity whether used in infotainment systems or power train applications. Obtain your high-quality automotive filter today and enjoy dependable operation in demanding environments.
Get EMC Components Series ACT45R1012PTL001 today—built for automotive signal integrity and durability in harsh environments.
Frequently Asked Questions
Where can I buy TDK Corporation ACT45R1012PTL001?
You can click on the BUY or RFQ button to purchase ACT45R1012PTL001 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACT45R1012PTL001?
You can download the ACT45R1012PTL001 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACT45R1012PTL001?
TDK Corporation
