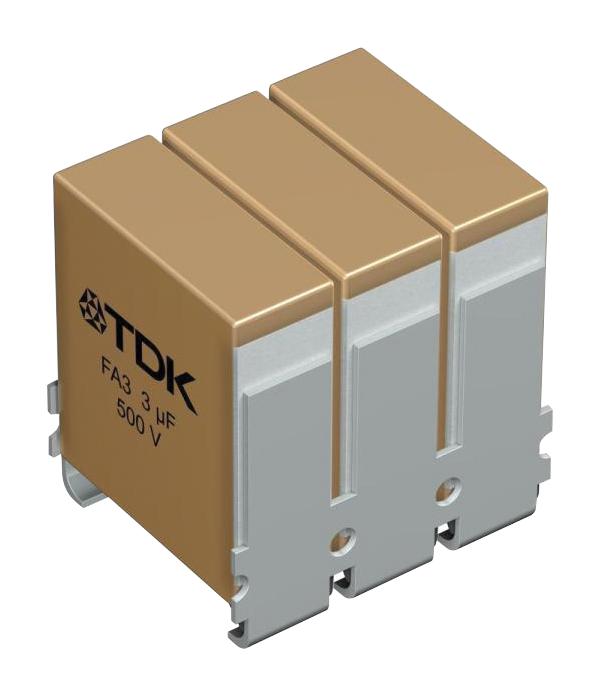

TDK Corporation B58035U7155M062 Fast-Switching Capacitor
The CeraLink capacitor series by TDK features high ripple current capability, robust operation at temperatures up to +150°C, and low ESL/ESR values, making it ideal for fast-switching semiconductors in power converters and inverters. Constructed with RoHS-compatible PLZT ceramic, copper inner electrodes, and silver outer electrodes, these capacitors offer high capacitance density, optimized high-frequency performance, and low dielectric absorption. Qualification is based on AEC-Q200 rev. D, ensuring reliability in automotive and industrial applications. Designed for reflow soldering, they provide excellent electrical stability and mechanical durability under demanding conditions.
TDK Corporation B58035U7155M062 Fast-Switching Capacitor Specifications:
- Capacitance range: varies with series, up to 10 μF typical
- Voltage ratings: 400 V to 900 V DC, depending on series
- Operating temperature: -40°C to +150°C
- Dissipation factor: < 0.02 at 25°C
- Insulation resistance: > 0.1 GΩ at 25°C
- Construction: RoHS-compatible PLZT ceramic, copper inner electrodes, silver outer electrodes
- Dimensional characteristics vary with series (e.g., FA2, FA3, FA10 types)
- Qualification: AEC-Q200 rev. D compliant
- Soldering: Suitable only for reflow soldering
- Features: Low ESL, low ESR, low dielectric absorption, high capacitance density, high ripple current capability
Buy the TDK B58035U – Reliable Fast-Switching Capacitor for Industrial Applications
Order TDK CeraLink B58035U today and ensure your power conversion and inverter designs benefit from high ripple current capacity, excellent thermal stability, and low inductance. These capacitors provide reliable performance in demanding industrial and automotive applications. With robust construction, qualification based on AEC-Q200 rev. D, and suitability for reflow soldering, they ensure long-term durability and electrical stability. Perfect for high-frequency filtering, snubbers, and DC link applications, these capacitors help optimize system efficiency and reliability. Purchase online now for fast delivery and technical support.
Buy TDK CeraLink B58035U now and experience unmatched reliability and high-frequency performance for power electronics and inverter systems.
Frequently Asked Questions
Where can I buy TDK Corporation B58035U7155M062?
You can click on the BUY or RFQ button to purchase B58035U7155M062 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part B58035U7155M062?
You can download the B58035U7155M062 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of B58035U7155M062?
TDK Corporation
