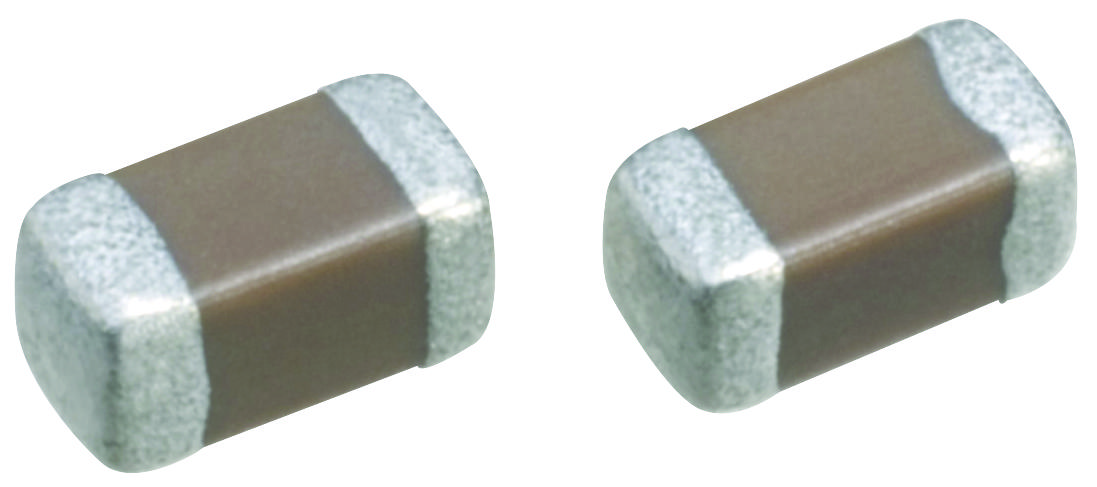

TDK Corporation C3216X7R1E105K160AA Multilayer Ceramic Capacitor
The TDK C series commercial grade multilayer ceramic chip capacitor features Class 2 X7R dielectric material with advanced layering technology, ensuring precise dielectric and electrode placement for high-performance capacitors. They provide high capacitance through the use of multiple thin ceramic dielectric layers and are suitable for smoothing and decoupling circuits. Available in capacitance values ranging from 0.5pF to 100µF, with case sizes including 0402, 0603, 1005, 1608, 2012, 3216, 3225, 4532, and 5750. They support DC voltages from 4V to 50V, offer low equivalent series inductance (ESL), excellent frequency characteristics, low self-heating, and high ripple resistance due to low ESR. Operating temperature ranges from -55°C to 125°C. The monolithic construction provides superior mechanical strength and reliability. Not recommended for new designs.
TDK Corporation C3216X7R1E105K160AA Multilayer Ceramic Capacitor Specifications:
- Series: C series
- Type: Multilayer ceramic chip capacitor
- Dielectric Material: Class 2 X7R
- Capacitance Range: 0.5pF to 100µF
- Case Sizes: 0402, 0603, 1005, 1608, 2012, 3216, 3225, 4532, 5750
- Supported Voltages: 4V to 50V DC
- Temperature Range: -55°C to 125°C
- Features: Low ESL, high ripple resistance, low self-heating, excellent frequency response
- Construction: Monolithic with precise layering for high reliability
- Application: Decoupling, filtering, smoothing circuits
- Note: Not recommended for new design applications
Buy the TDK Multilayer Ceramic Capacitor – Reliable High-Performance for Industrial Applications
Enhance your electronic designs with our high-quality ceramic capacitors. Designed for durability, low ESR, and excellent frequency response, these capacitors are ideal for smoothing, filtering, and decoupling in demanding power supply applications. Available in various sizes supporting voltages up to 50V and operating over a temperature range from -55°C to 125°C. Their monolithic structure ensures high mechanical strength and reliability, making them perfect for high-density, high-frequency circuits. Order online and optimize your circuit performance today.
Buy TDK ceramic chip capacitors now and experience unmatched reliability and performance in your high-frequency power supplies.
Frequently Asked Questions
Where can I buy TDK Corporation C3216X7R1E105K160AA?
You can click on the BUY or RFQ button to purchase C3216X7R1E105K160AA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part C3216X7R1E105K160AA?
You can download the C3216X7R1E105K160AA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of C3216X7R1E105K160AA?
TDK Corporation
