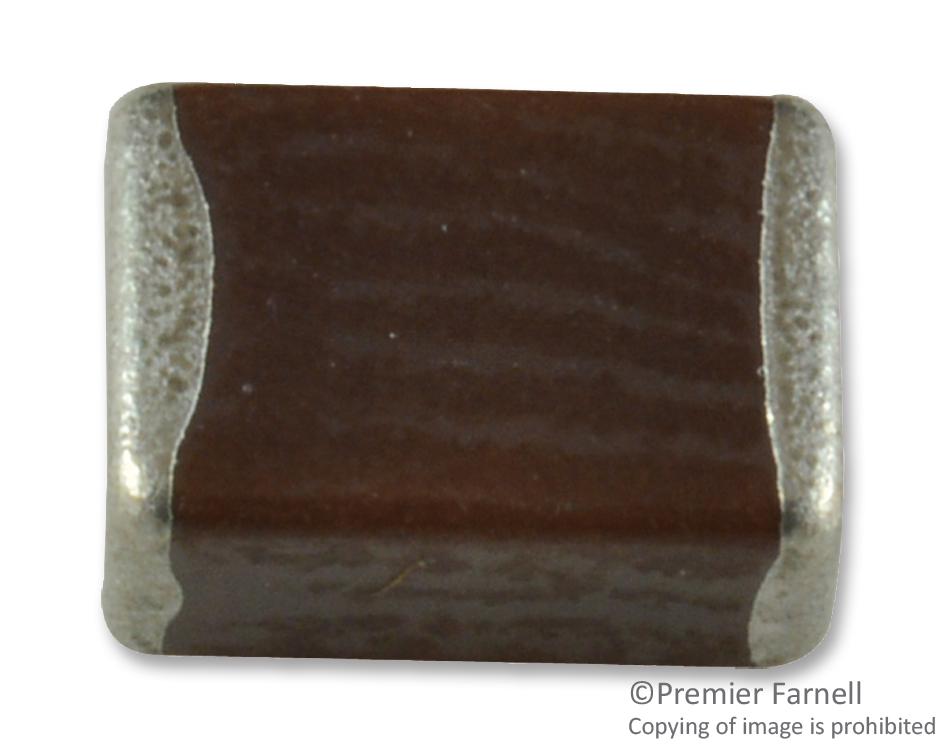

TDK Corporation C4532X7R3D222K130KA High Voltage Ceramic Capacitor
High voltage multilayer ceramic chip capacitor designed for reliable performance in demanding applications such as inverter circuits, LAN cards, and high-voltage systems. Features advanced internal electrode structure, low dielectric strength materials, and complies with safety and performance standards. Suitable for reflow soldering with recommended flux and careful handling when used on aluminum circuit boards. Various sizes, capacitance values, and temperature characteristics are available, making these capacitors ideal for high-voltage, noise bypass, and signal transceiver applications in modern electronic devices.
TDK Corporation C4532X7R3D222K130KA High Voltage Ceramic Capacitor Specifications:
- Type: C4532 [EIA CC1812]
- Capacitance Range: 222 (2.2nF), 103 (10,000pF)
- Rated Voltage: 3KV (3F)
- Temperature Characteristics: COG (0+30ppm/°C)
- Tolerance: ±10%
- Thickness: 2.30 mm
- Size: 45.20 mm x 22.00 mm
- Material: Multilayer ceramic with internal electrode structure
- Compliance: Meets safety and performance standards for high voltage applications
- Packaging: Surface-mount, suitable for reflow soldering
- Application: High-voltage circuits, noise bypass for power supplies, LAN transceivers
- Durability: High withstand voltage characteristics due to proprietary internal design
- Color Coding and Marking: As per industry standards, indicating capacitance and tolerance
- Environmental: RoHS compliant, suitable for SMT assembly
Buy the TDK Series High Voltage Ceramic Capacitors: C4532
Purchase TDK high voltage ceramic capacitors online today to ensure your electronic projects and high-voltage systems perform with maximum reliability. These advanced multilayer ceramic capacitors offer excellent withstand voltage, low ESR, and stable performance across a wide temperature range. Ideal for inverter circuits, LAN transceivers, and high-voltage power supply noise filtering. With a variety of sizes, capacitances, and temperature characteristics available, ordering online guarantees quick delivery, consistent quality, and the technical support you need for your critical applications.
Buy TDK high voltage ceramic chip capacitor now and experience unmatched reliability and performance in your high-voltage circuit designs.
Frequently Asked Questions
Where can I buy TDK Corporation C4532X7R3D222K130KA?
You can click on the BUY or RFQ button to purchase C4532X7R3D222K130KA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part C4532X7R3D222K130KA?
You can download the C4532X7R3D222K130KA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of C4532X7R3D222K130KA?
TDK Corporation
